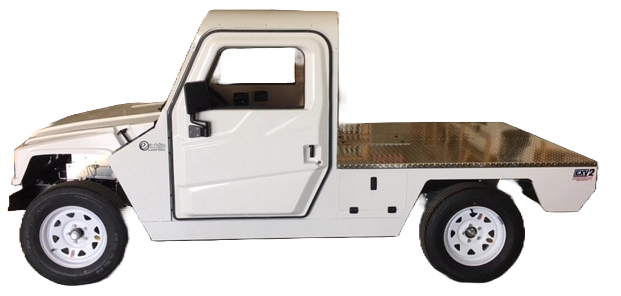

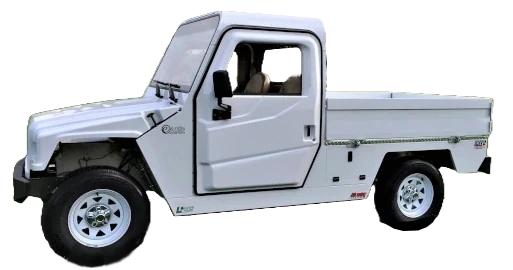

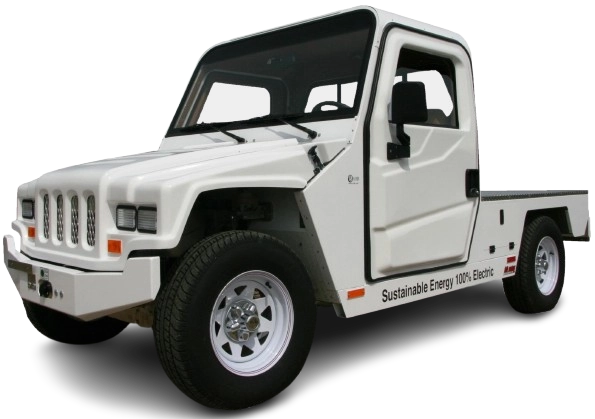

EXV2 PATRIOT
The EXV2 Patriot is the definition of a game changer. That's right, America's most capable electric work truck. It is proof that electric vehicles aren't only gaining popularity because of cost savings or being green, they can also be tough, quality built, comfortable, and able to get the job done. At only estimated cost of three cents a mile to operate, you will not only be enjoying the thrill of the ride, you will be saving money in fuel and in maintenance costs while meeting your every day initiatives, mandates, and goals to go green.
Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

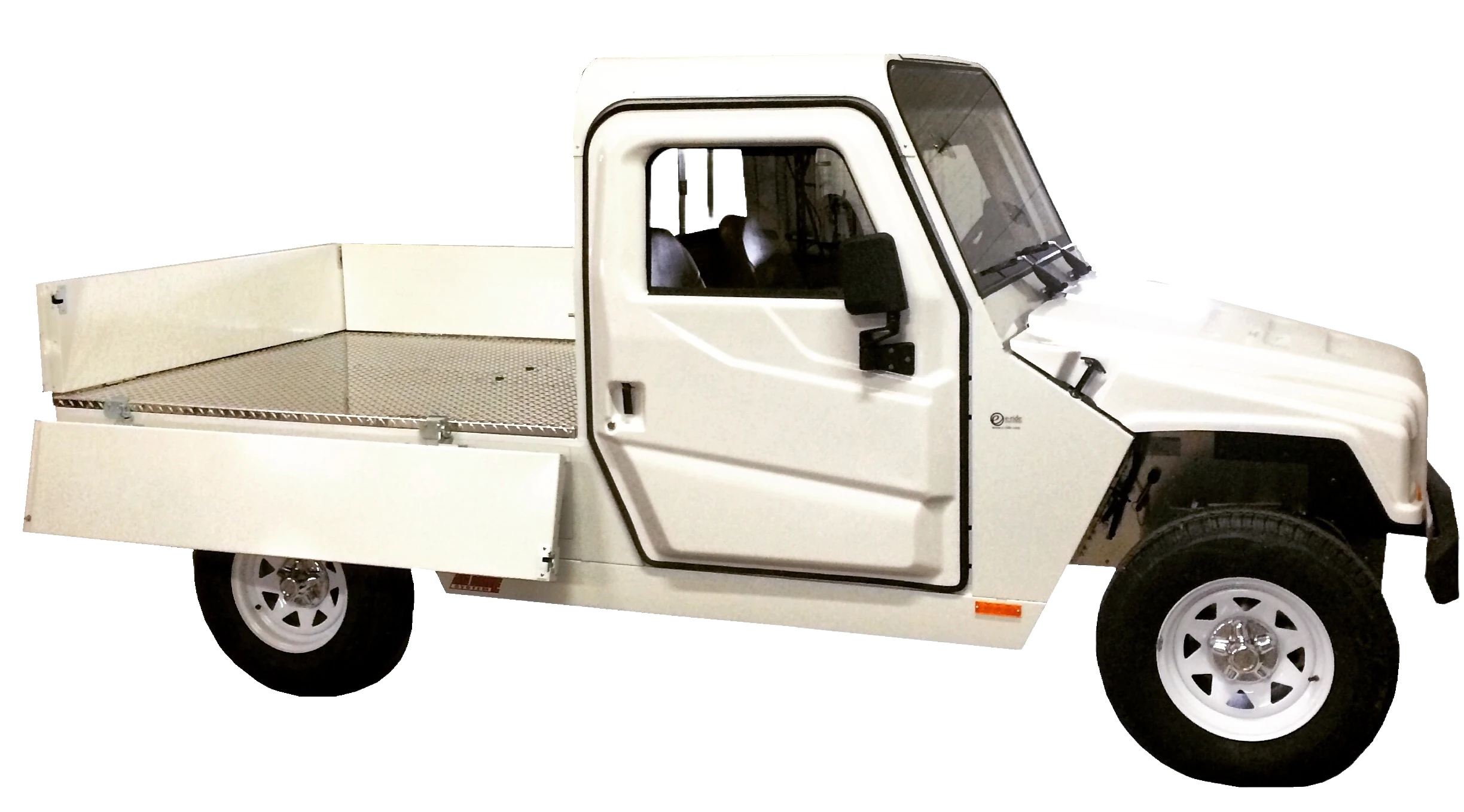

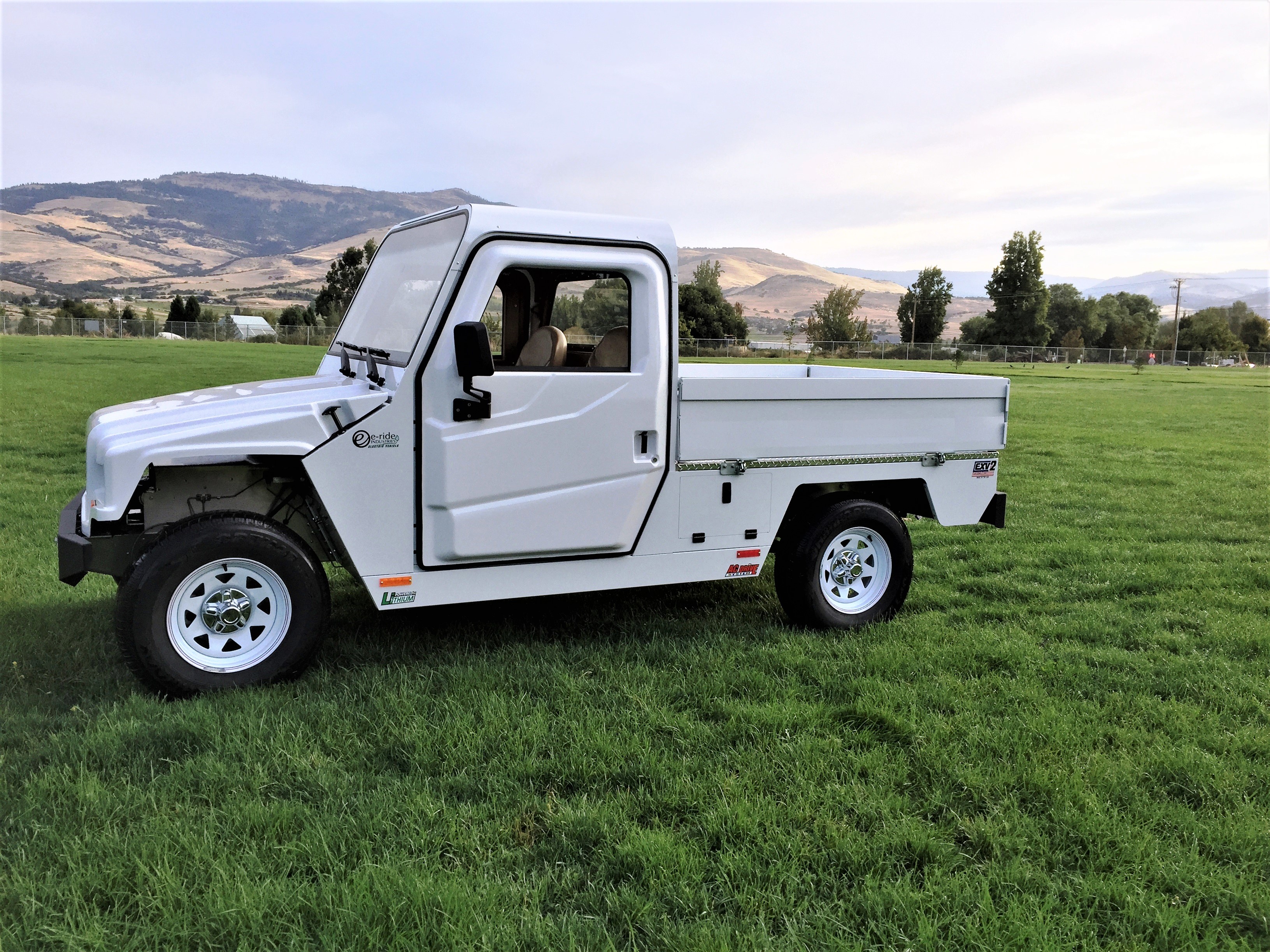

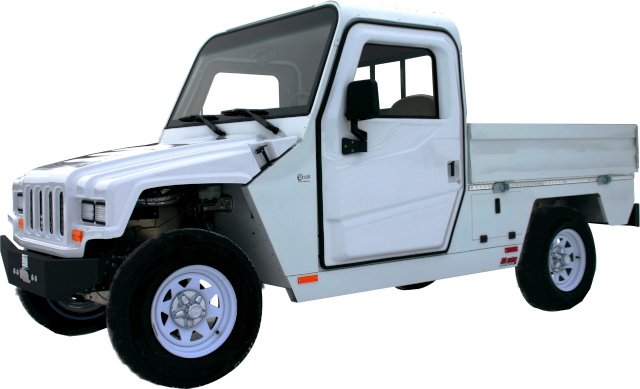

EXV2 PATRIOT PICKUP

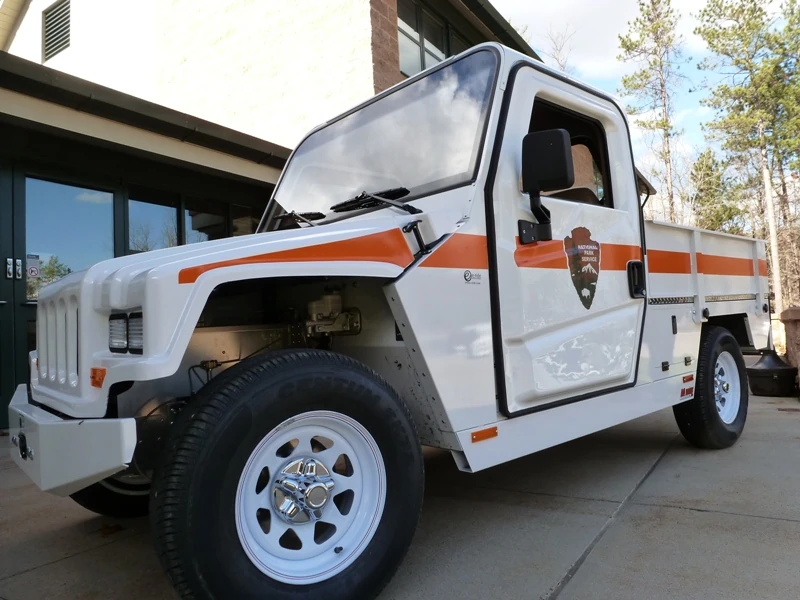

All of the benefits of the EXV2 Patriot but with this fold down bed side option it creates the availability to easily change the vehicle from a flatbed to pickup box configuration. All three bed sides fold down by simply pulling them upward then out. Each of the bed sides can be easily completely removed. Allows for easy loading on all three sides of the flatbed. Panels are all aluminum painted to match body color. Hinges are made of thick steel with zinc coated finish.
Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

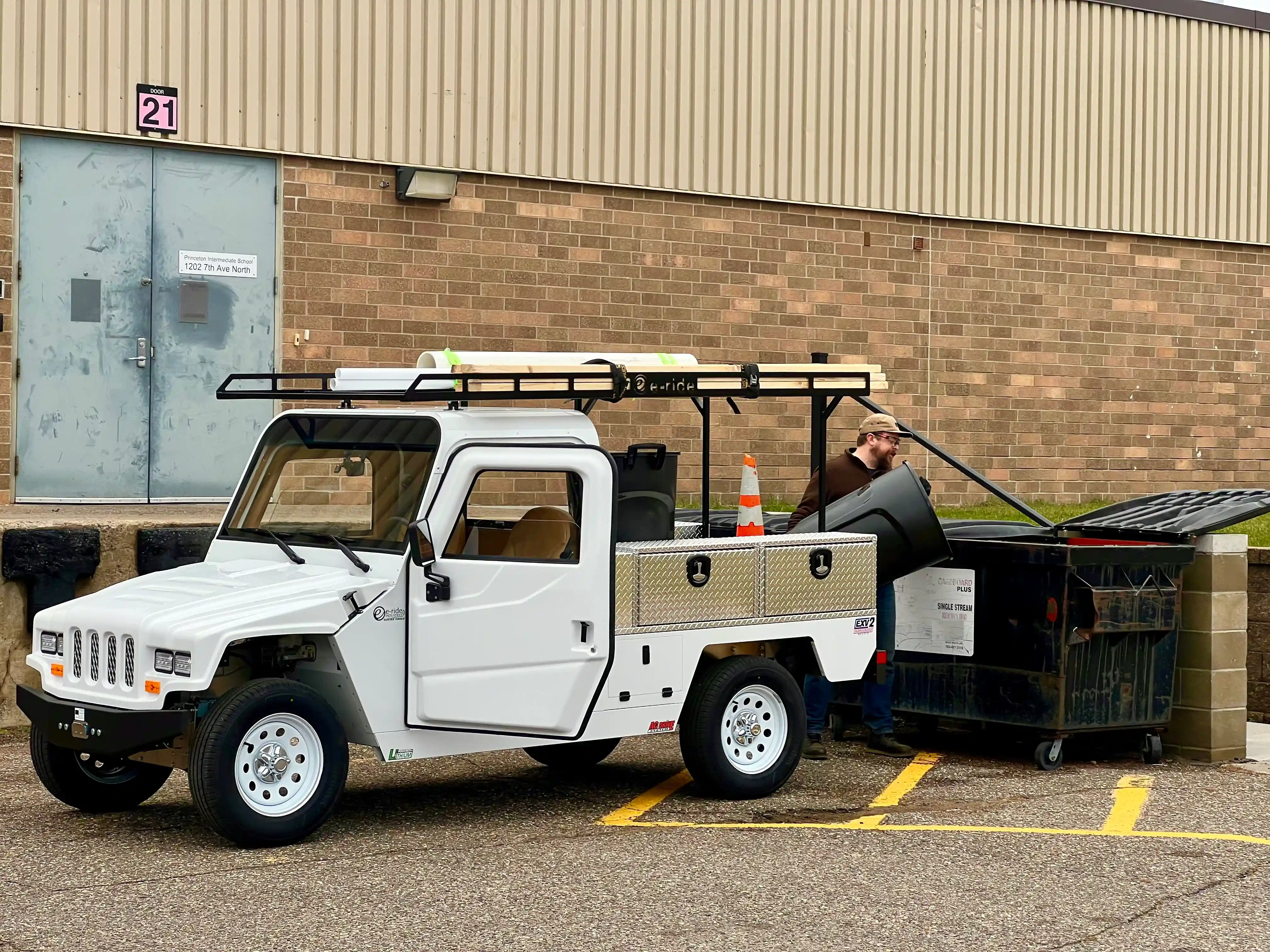

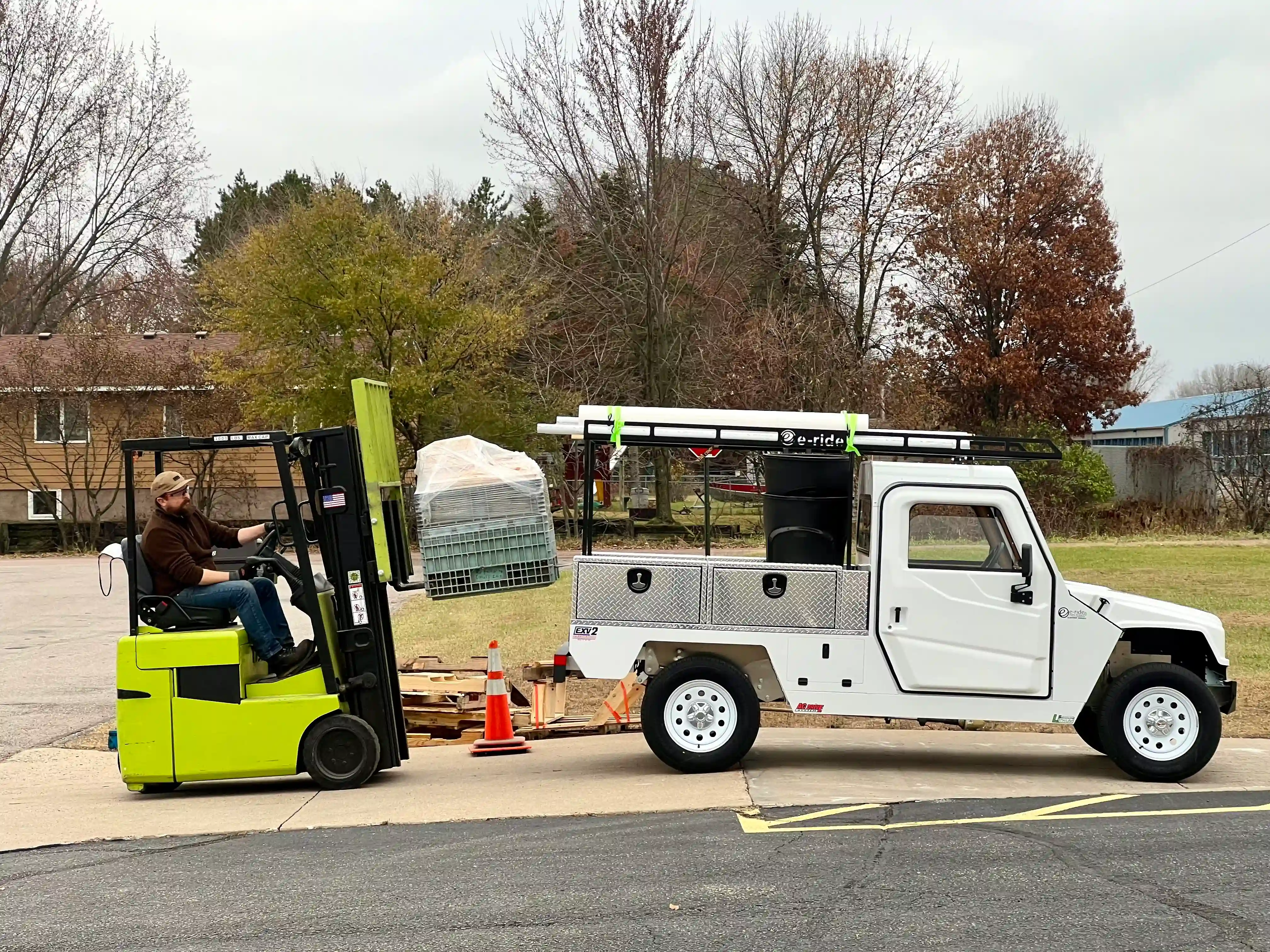

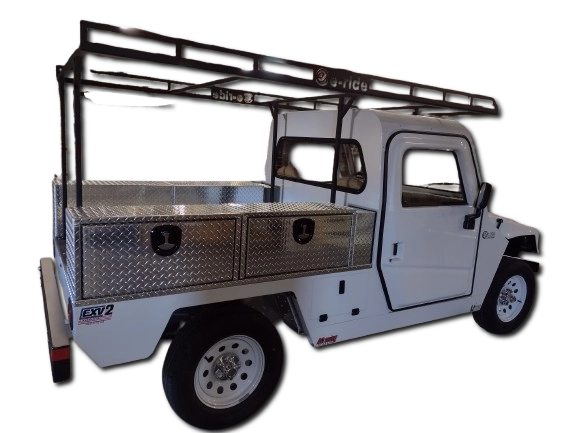

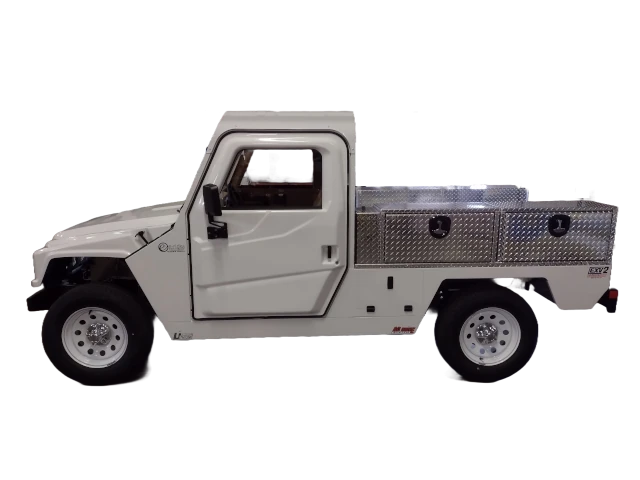

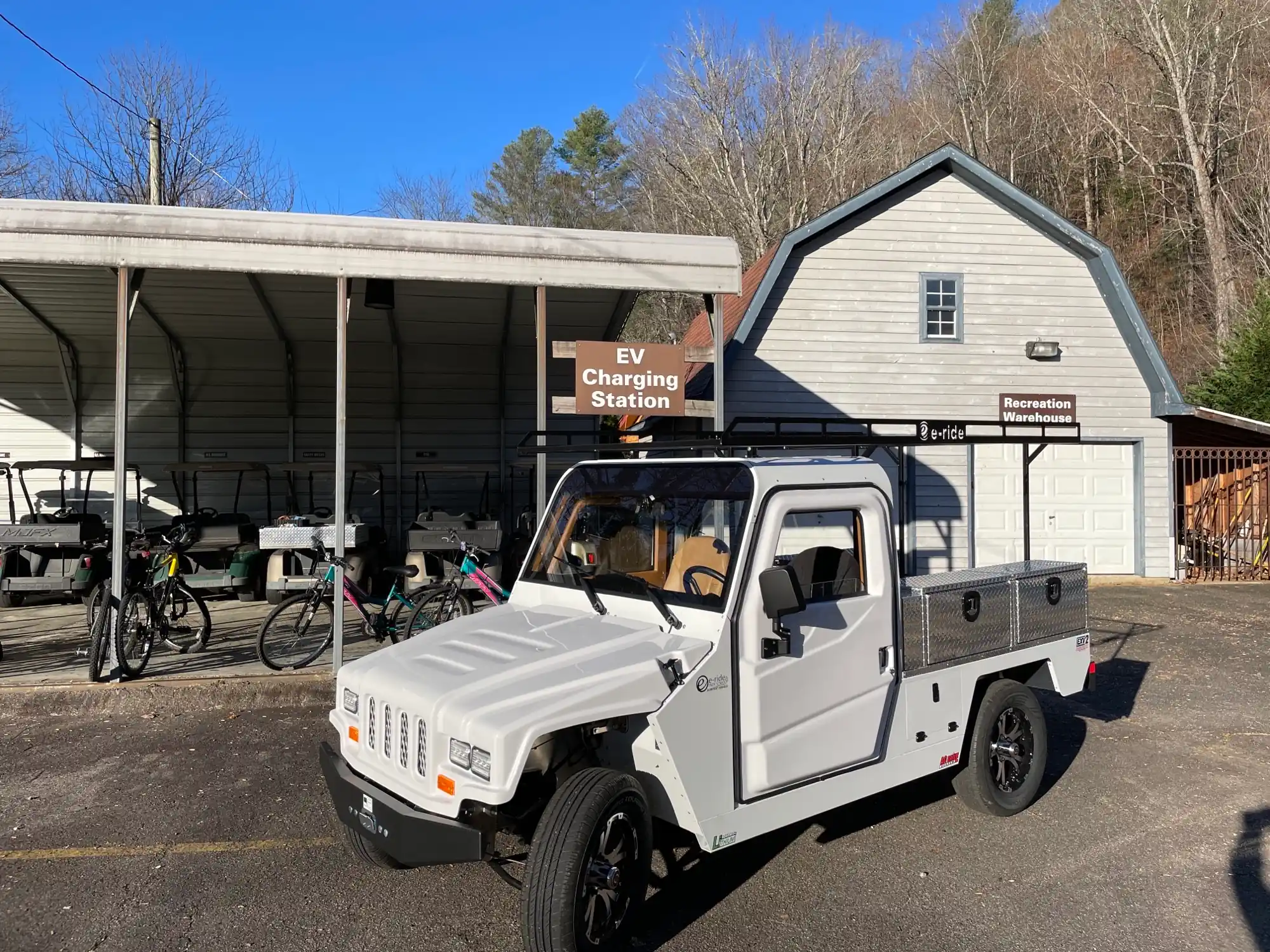

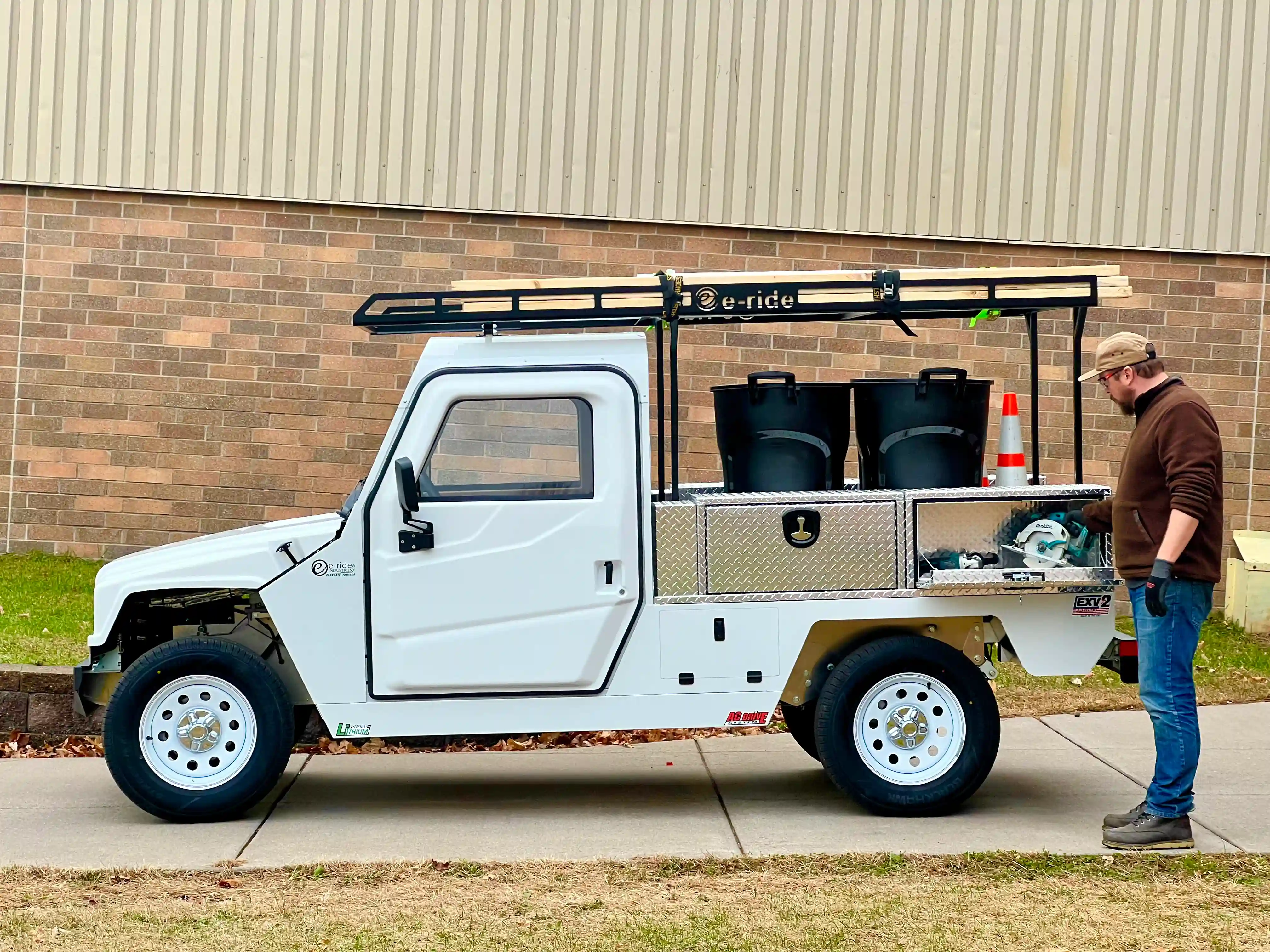

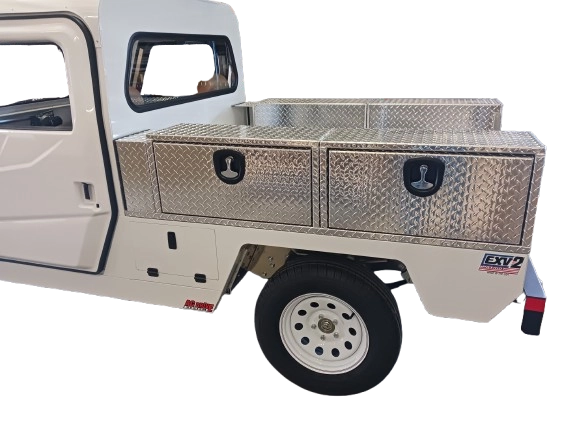

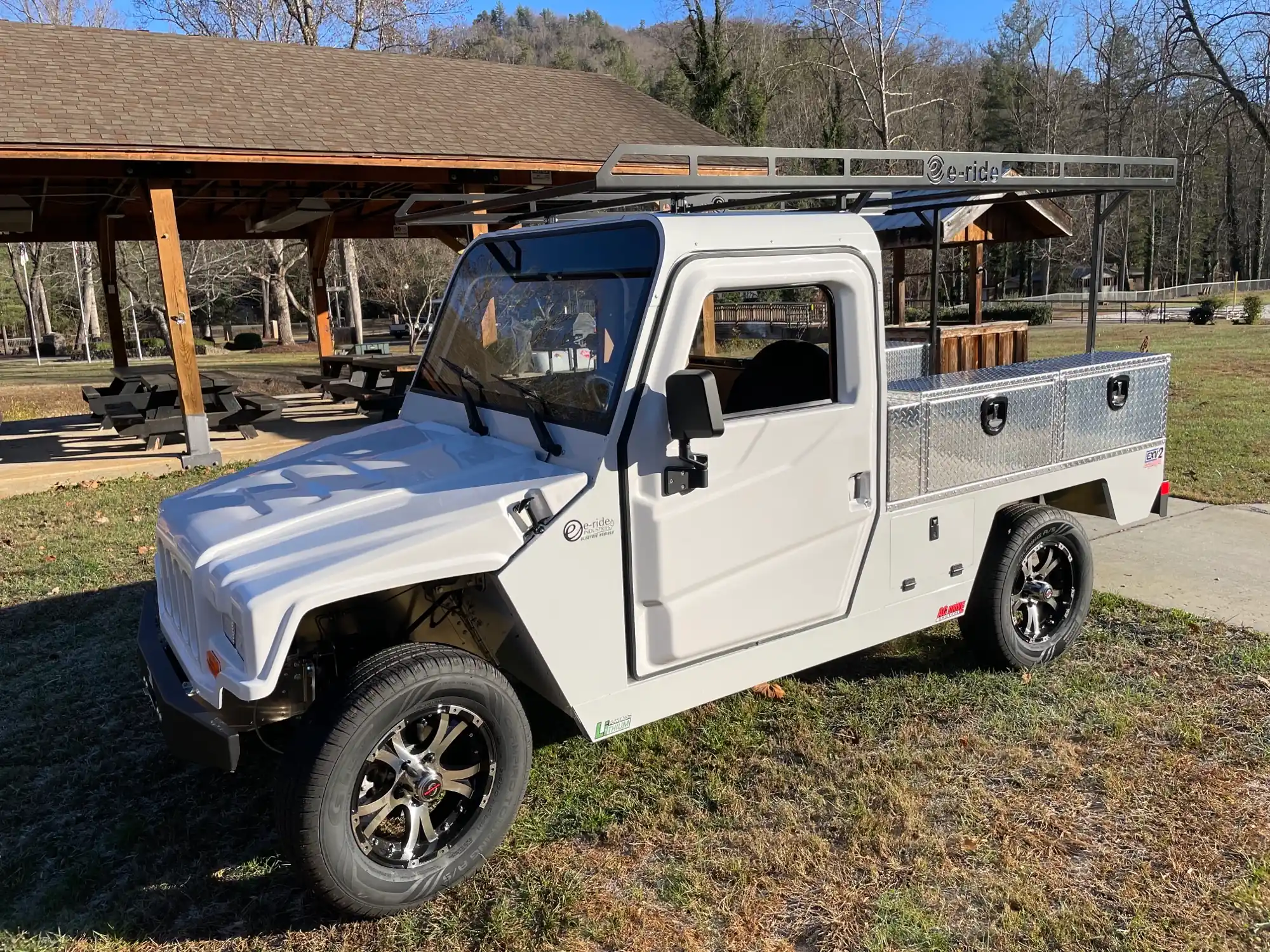

EXV2 PATRIOT TOOLBOX
All of the benefits of the EXV2 Patriot but with lockable, double side opening toolboxes on both sides.
Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

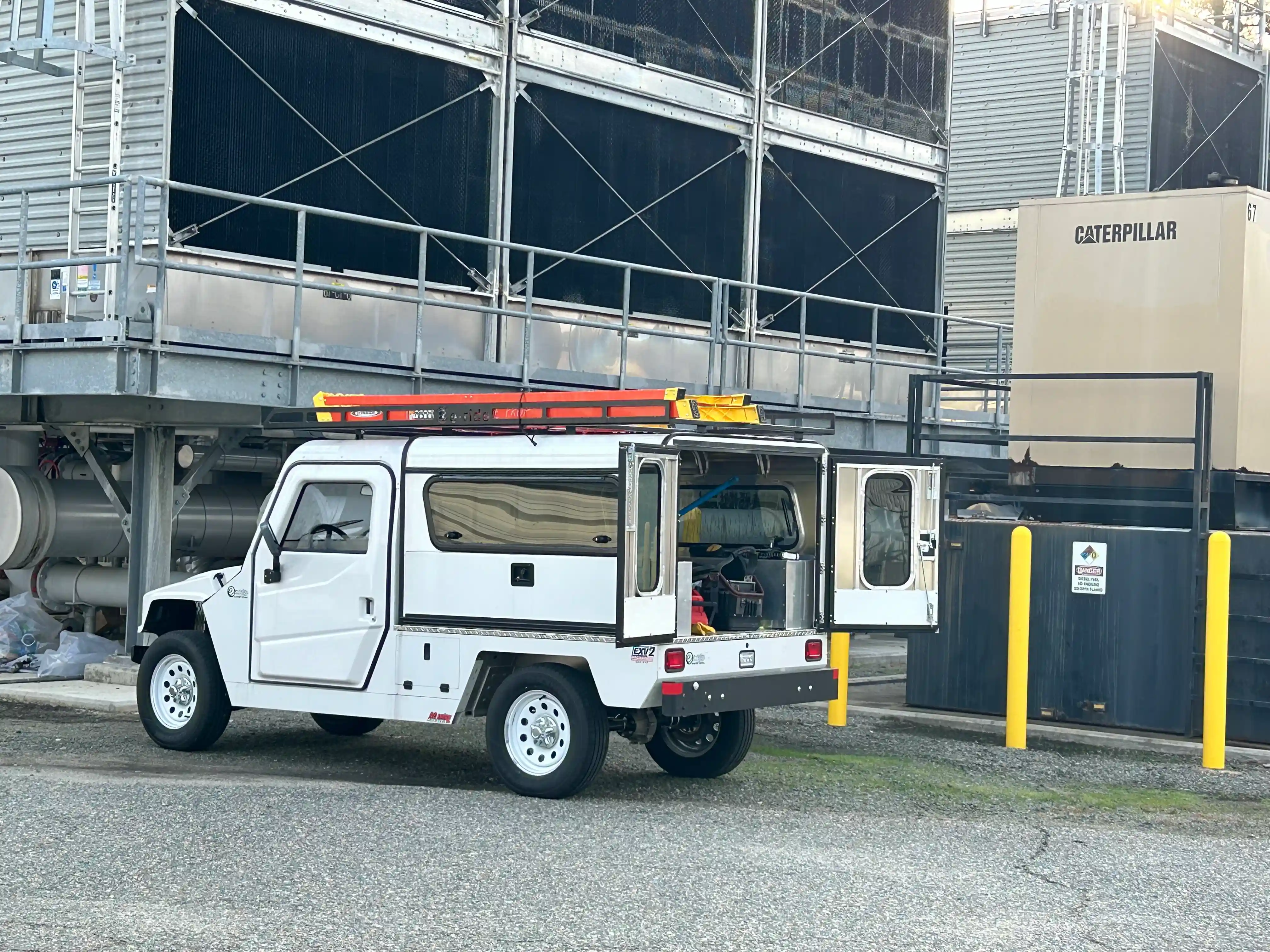

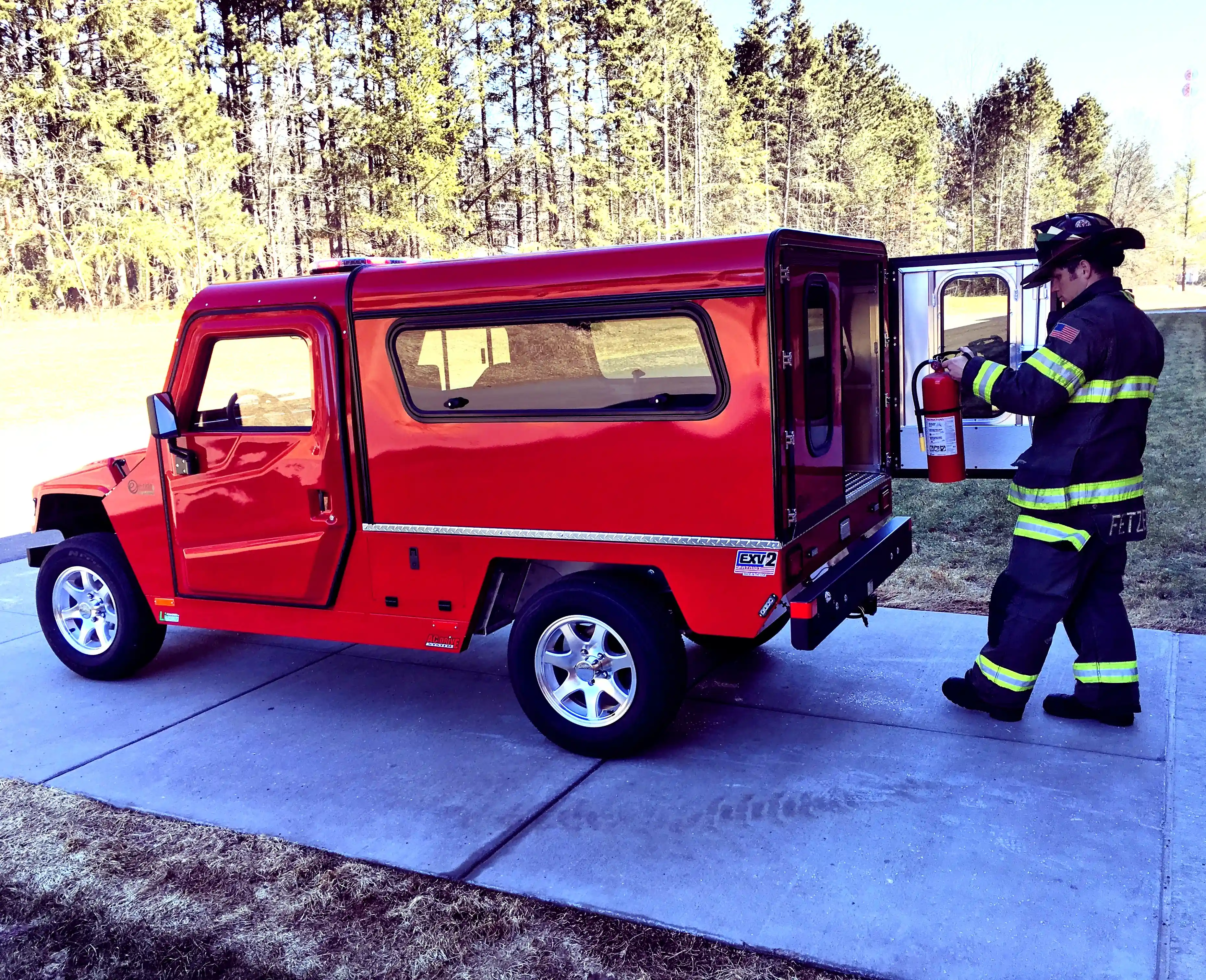

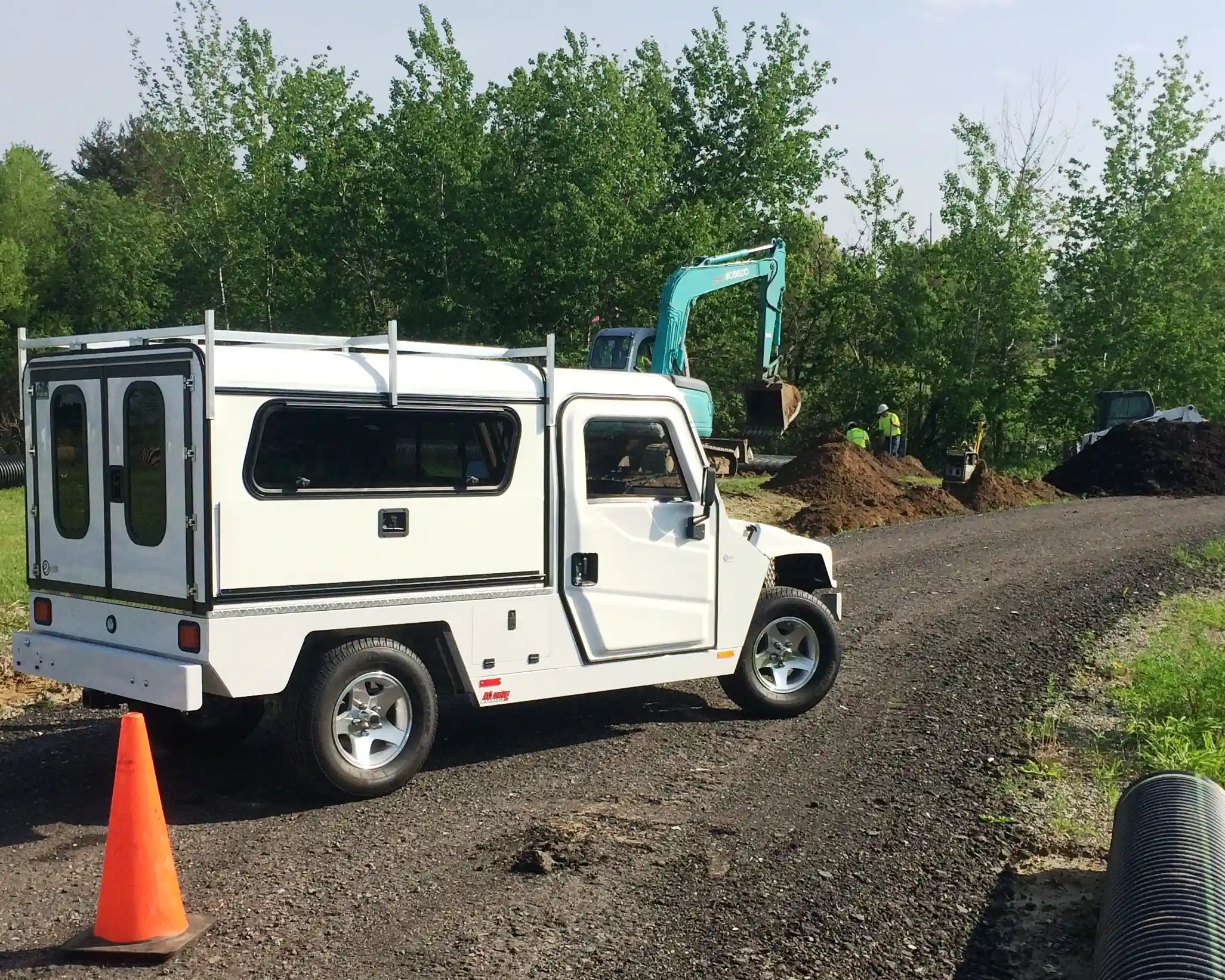

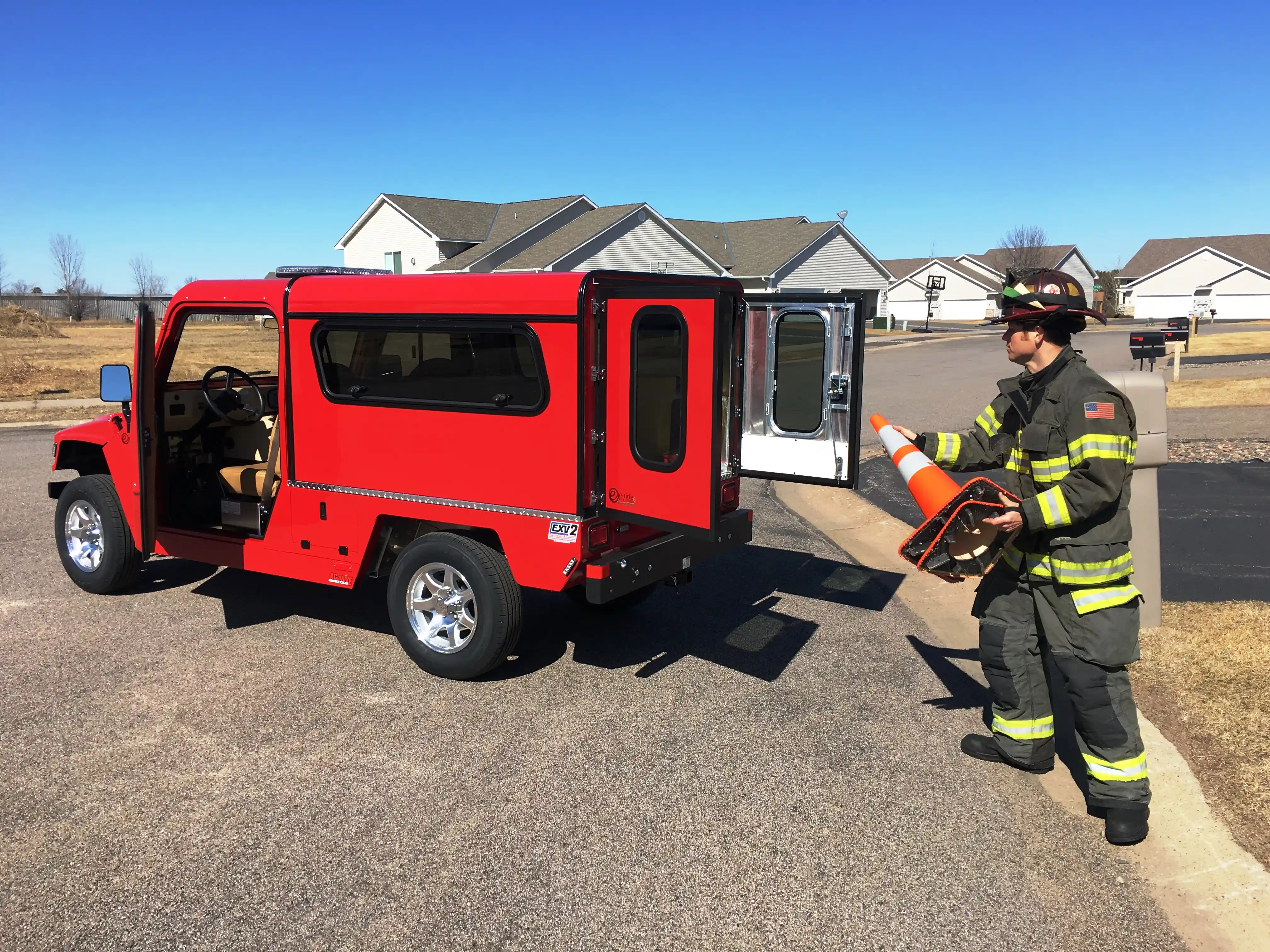

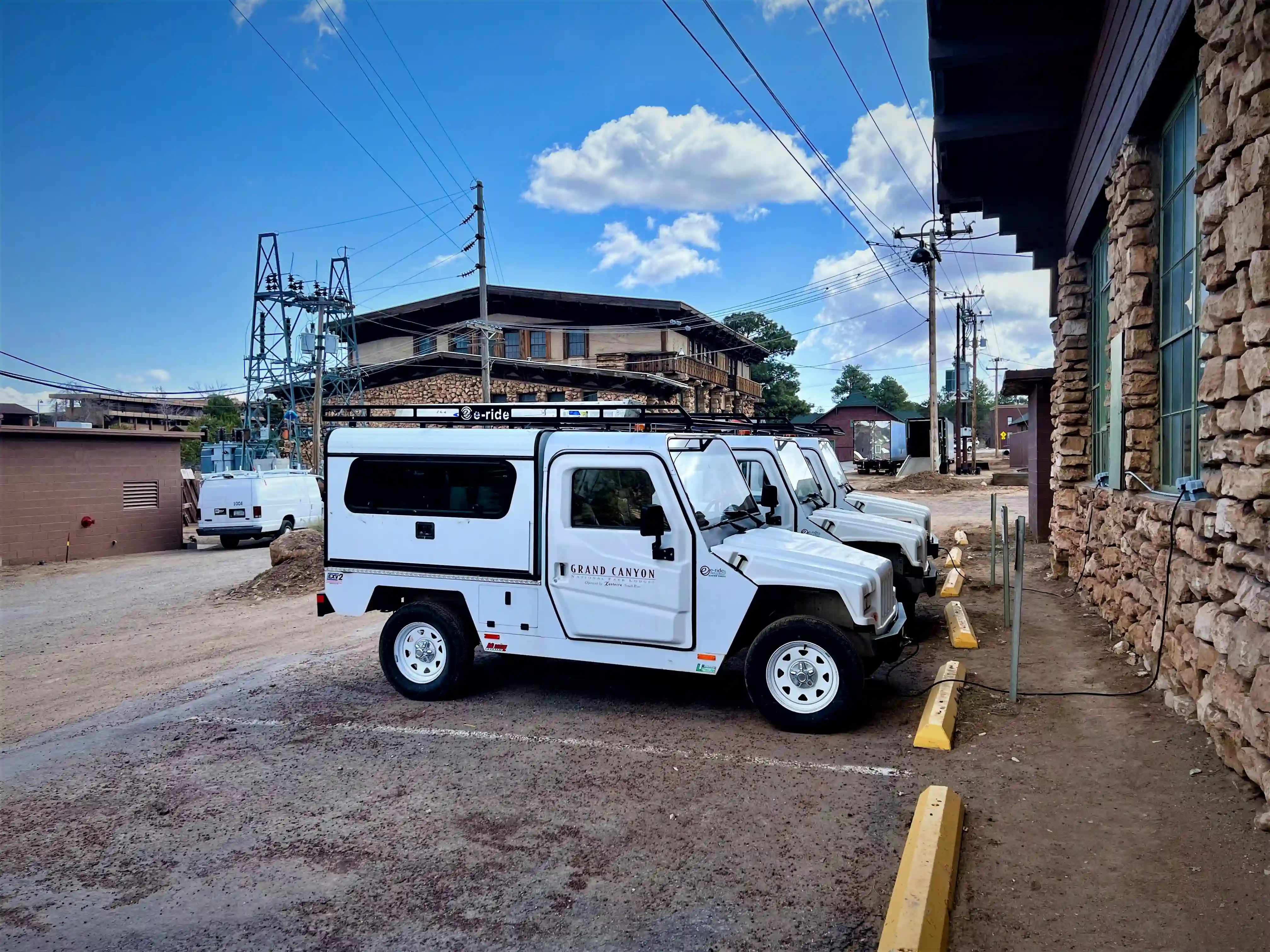

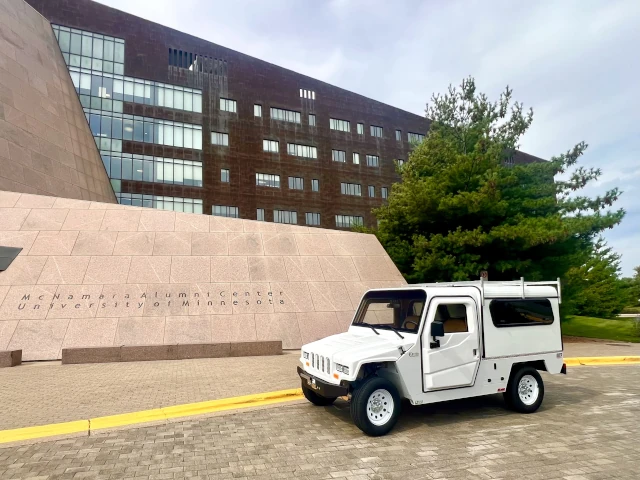

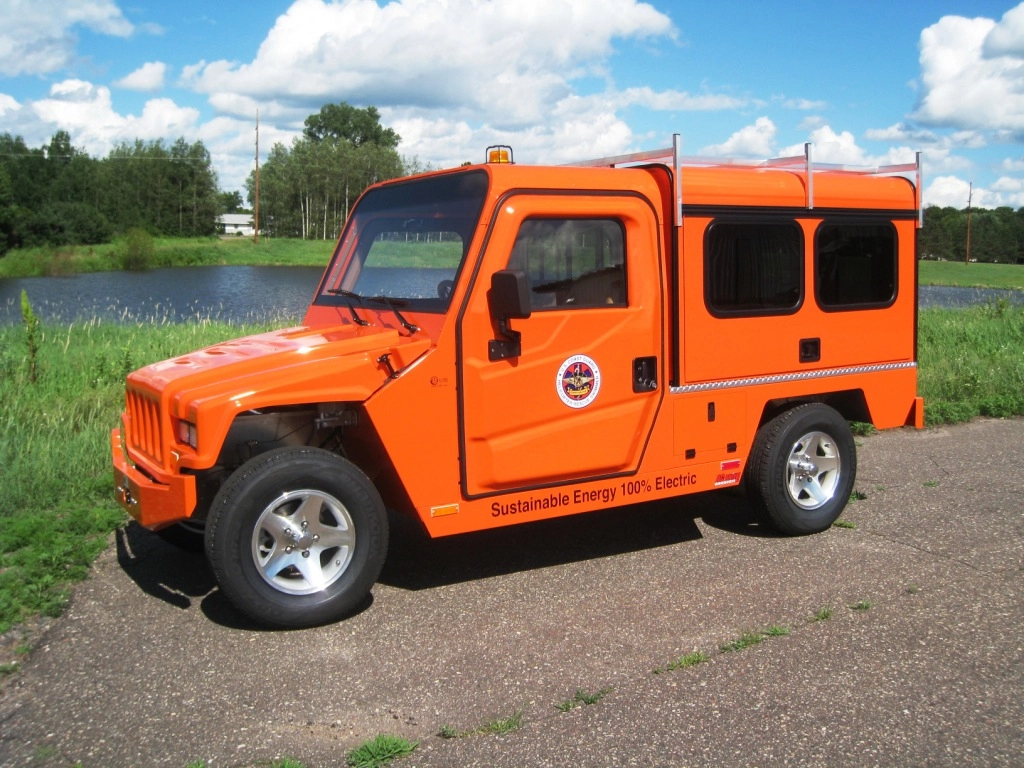

EXV2 PATRIOT TOPPER

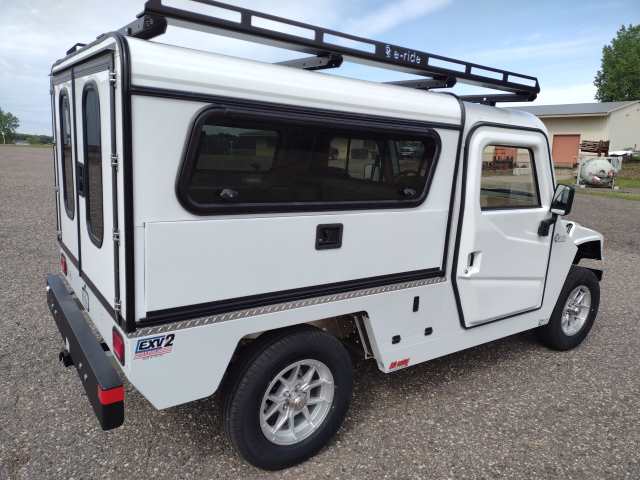

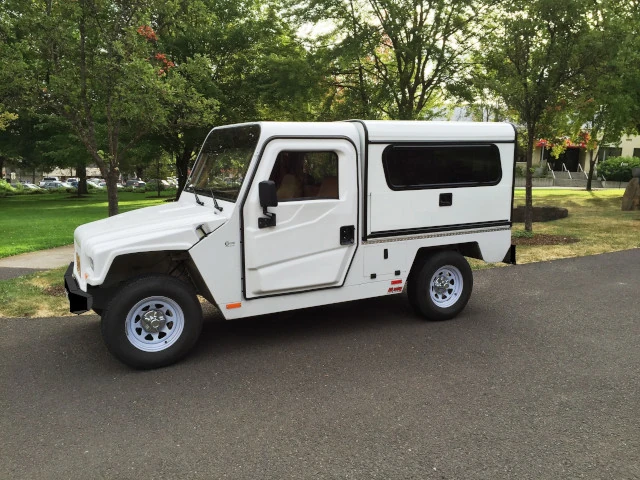

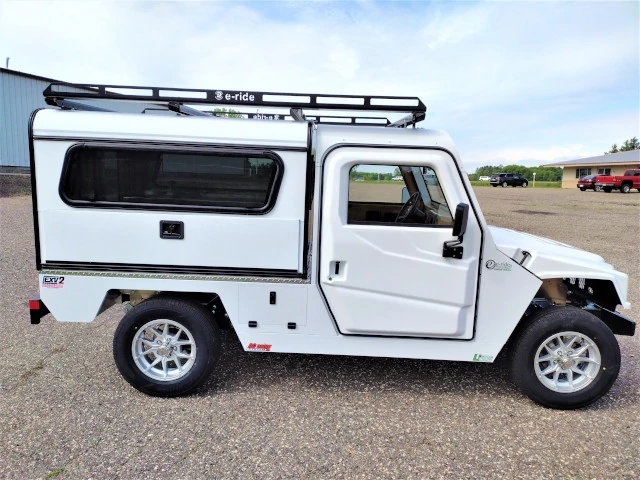

All of the benefits of the EXV2 Patriot but with added heavy duty, thick skinned aluminum topper enclosure built with an all aluminum structure designed to provide you a dry lockable storage area. At the rear of the enclosure are two lockable doors that open sideways. Each door has its own window. On each side of the topper are lockable windows that lift open allowing easier access to the enclosure. The front window slides open for air circulation. It also flips inward and down allowing full access to clean both sides of the enclosure glass and rear window of the vehicle cab. All locks on the enclosure are keyed alike.
Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

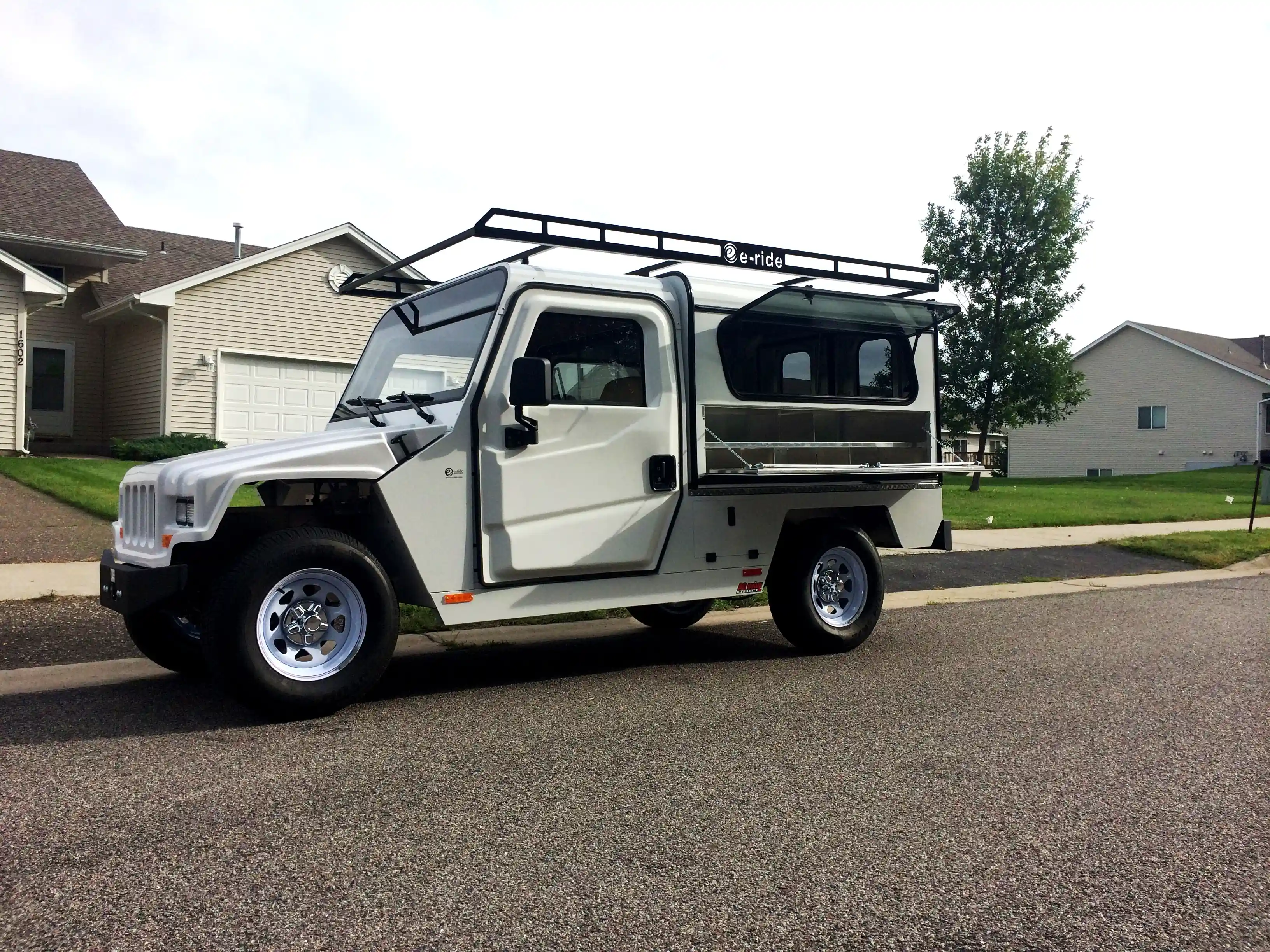

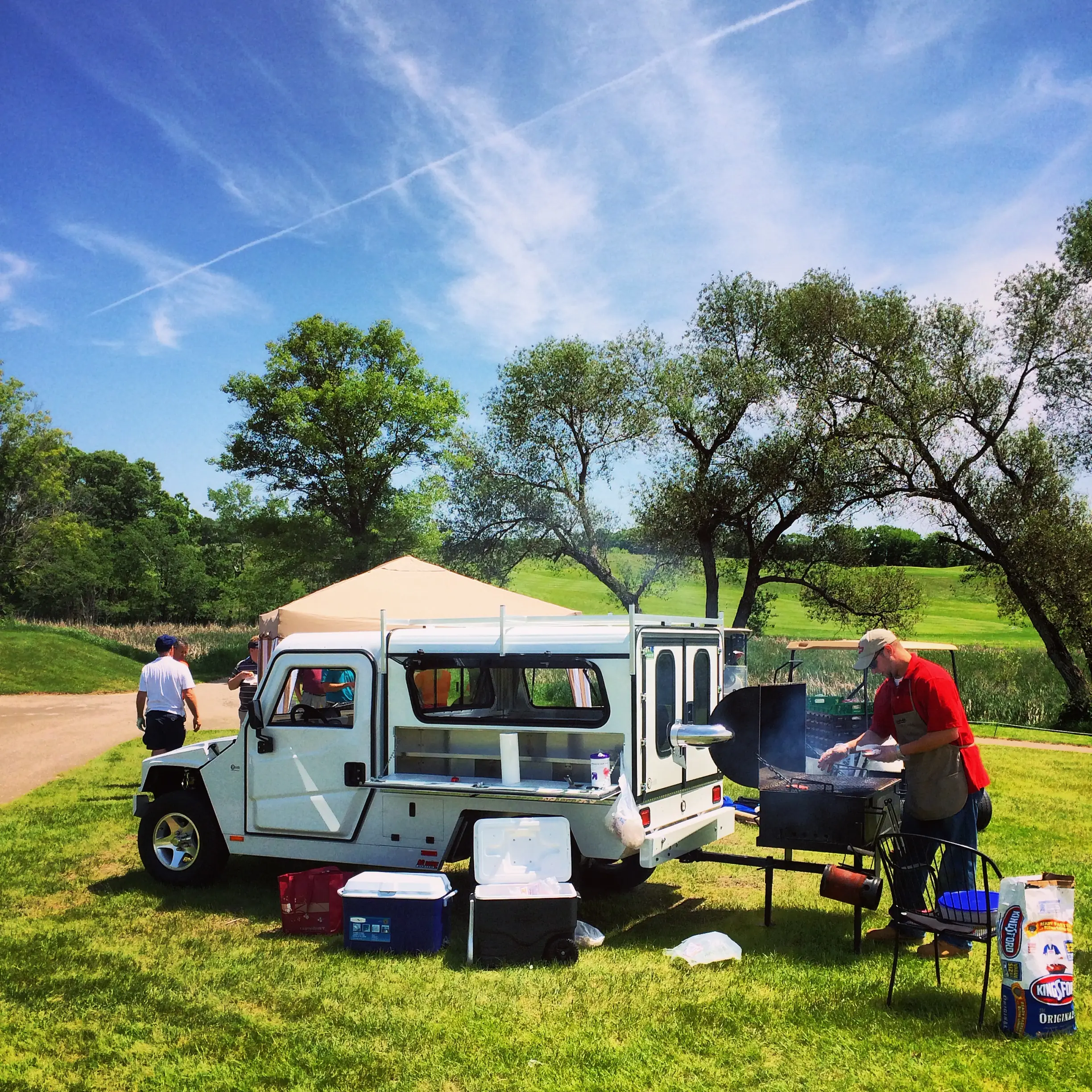

EXV2 PATRIOT TOPPER TOOLBOX

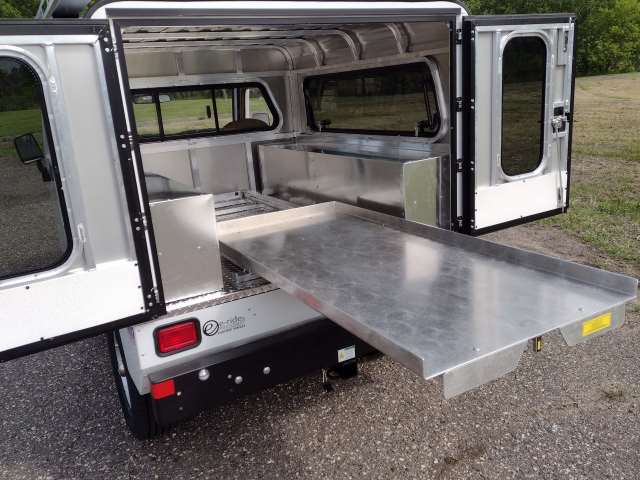

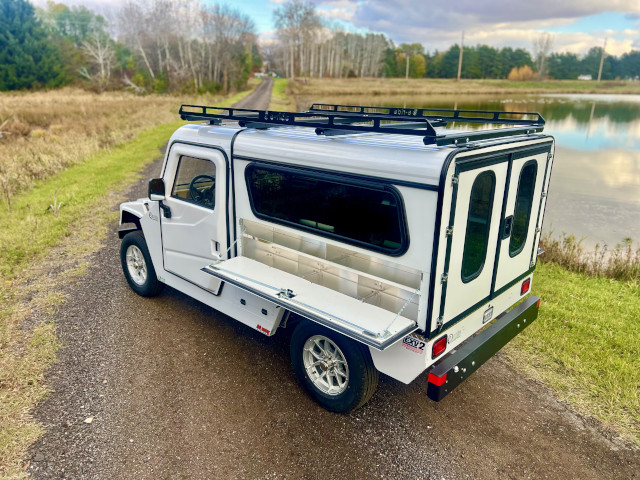

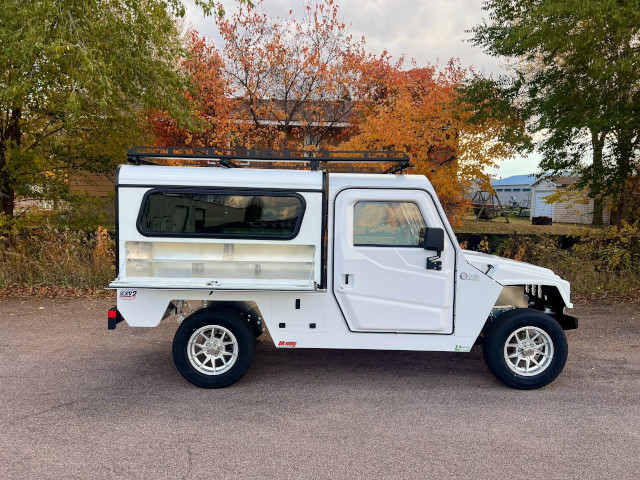

All of the benefits of the EXV2 Patriot but with added heavy duty topper enclosure with built in toolboxes built with an all aluminum structure designed to provide you a dry lockable storage area. At the rear of the enclosure are two lockable doors that open sideways. Each door has its own window. On each side of the topper are lockable windows that lift open allowing easier access to the enclosure. Also on each side are tool boxes. The toolbox doors open downward providing a small work space when open. In each toolbox are solid dividers providing 5 separated storage compartments. The front window slides open for air circulation. It also flips inward and down allowing full access to clean both sides of the enclosure glass and rear window of the vehicle cab. All locks on the enclosure are keyed alike.
Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet
CHOOSE YOUR BATTERY SYSTEM
Choose a battery pack based on what matters most to you—price, maintenance, replacement costs, lifetime charge cycles, weight, range or charge time. We have an option for everyone.
Flooded Lead Acid w/
1.5KW Charger
Li-Ion 100AH (8KW) w/
3.3KW Charger
Li-Ion 100AH (8KW) w/
6.6KW Charger
Li-Ion 163AH (13KW) w/
3.3KW Charger
Li-Ion 163AH (13KW) w/
6.6KW Charger
Battery Life Cycles*
550 @80% DOD
1500 @80% DOD
1500 @80% DOD
1500 @80% DOD
1500 @80% DOD
Typical Range**
15-30 miles
15-30 miles
15-30 miles
22-45 miles
22-45 miles
Charge Time
7-8 hrs
3-7 hrs
1.5-7 hrs
4.5-11 hrs
2.25-11 hrs
Maint. Free
No
Yes
Yes
Yes
Yes
Operat. Temp.***
-4-113°F
-20-130°F
-20-130°F
-20-130°F
-20-130°F
Battery Warranty
1 Year
1 Year
1 Year
1 Year
1 Year
*DOD = Depth of discharge, Life cycles vary by usage and maintenance.
**Range based on typical, average use. Model, payload, battery type, battery age and terrain will impact range.
***Range reduced in colder weather. Li-ion comes standard with battery warming system maintaining 50°F.
EXV2 POPULAR OPTIONS

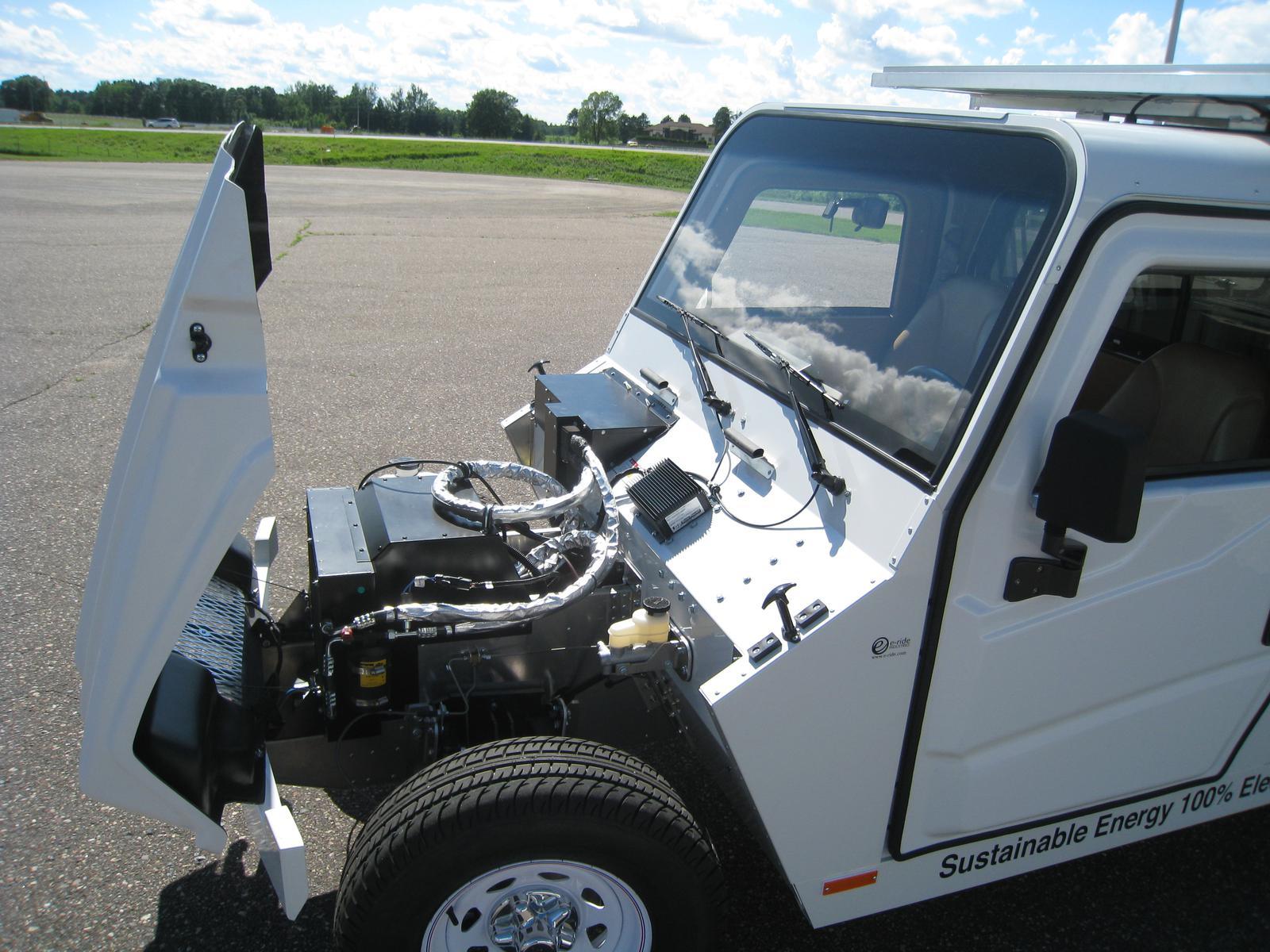

Air Conditioning

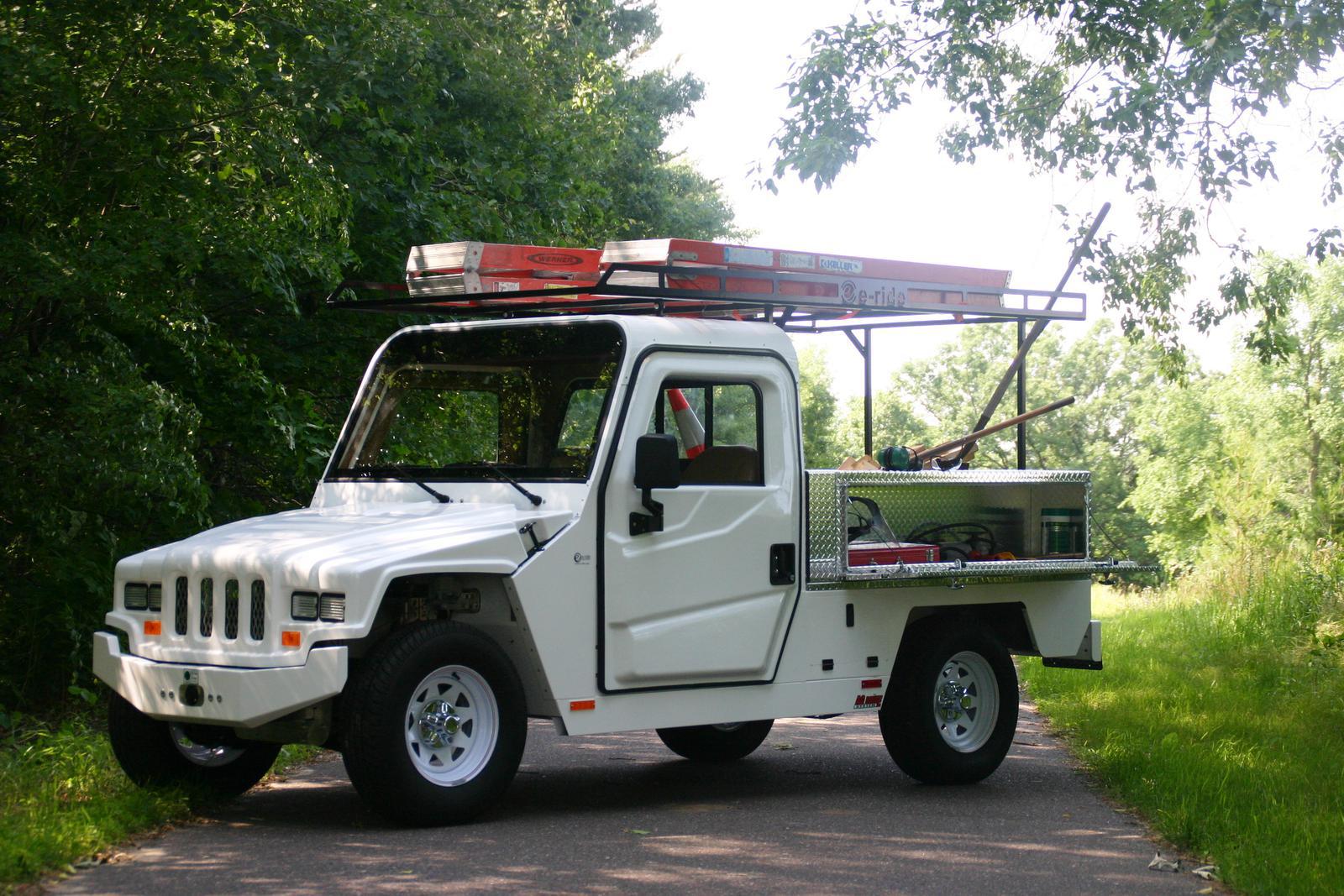

Ladder Rack

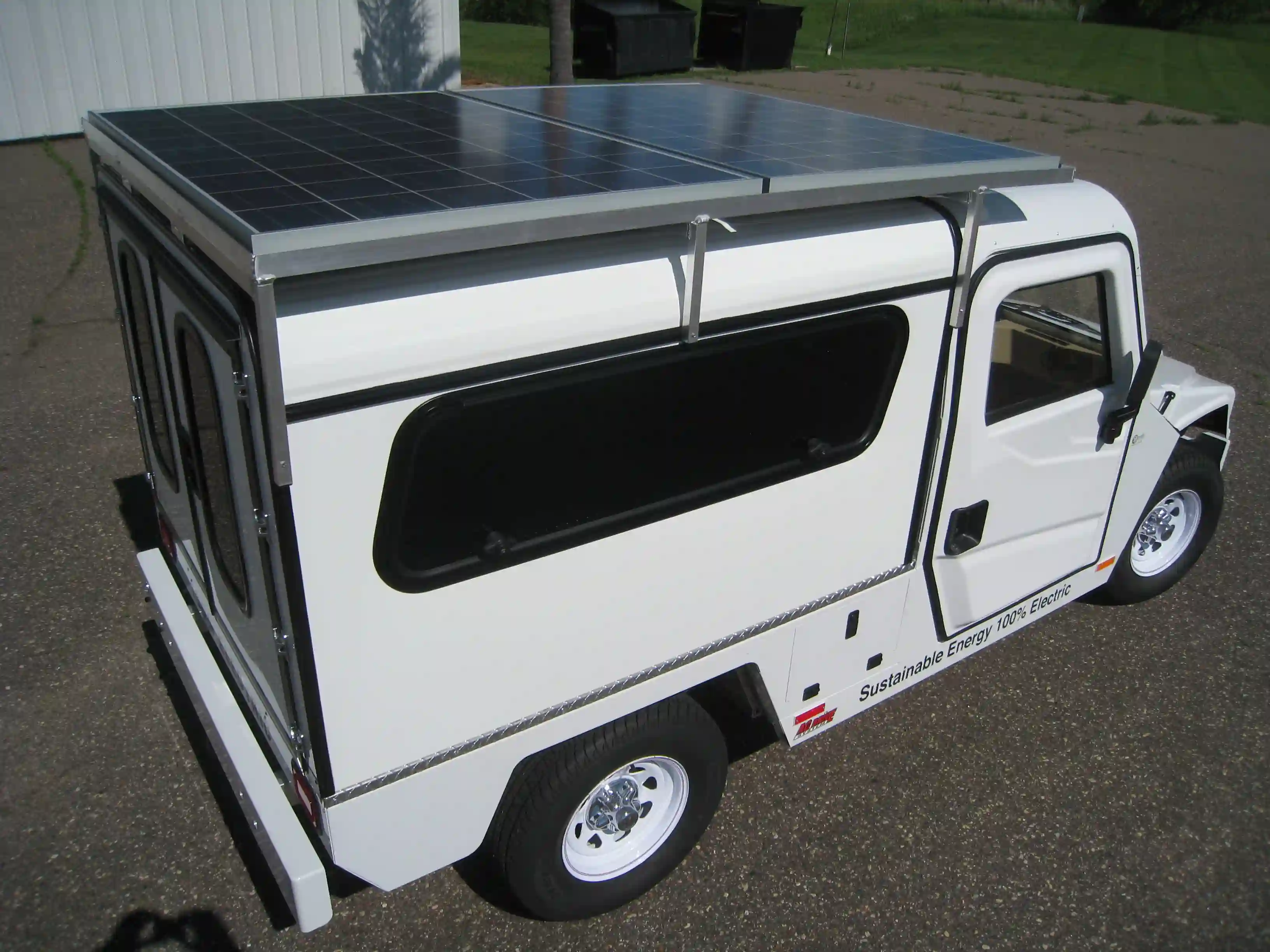

Solar

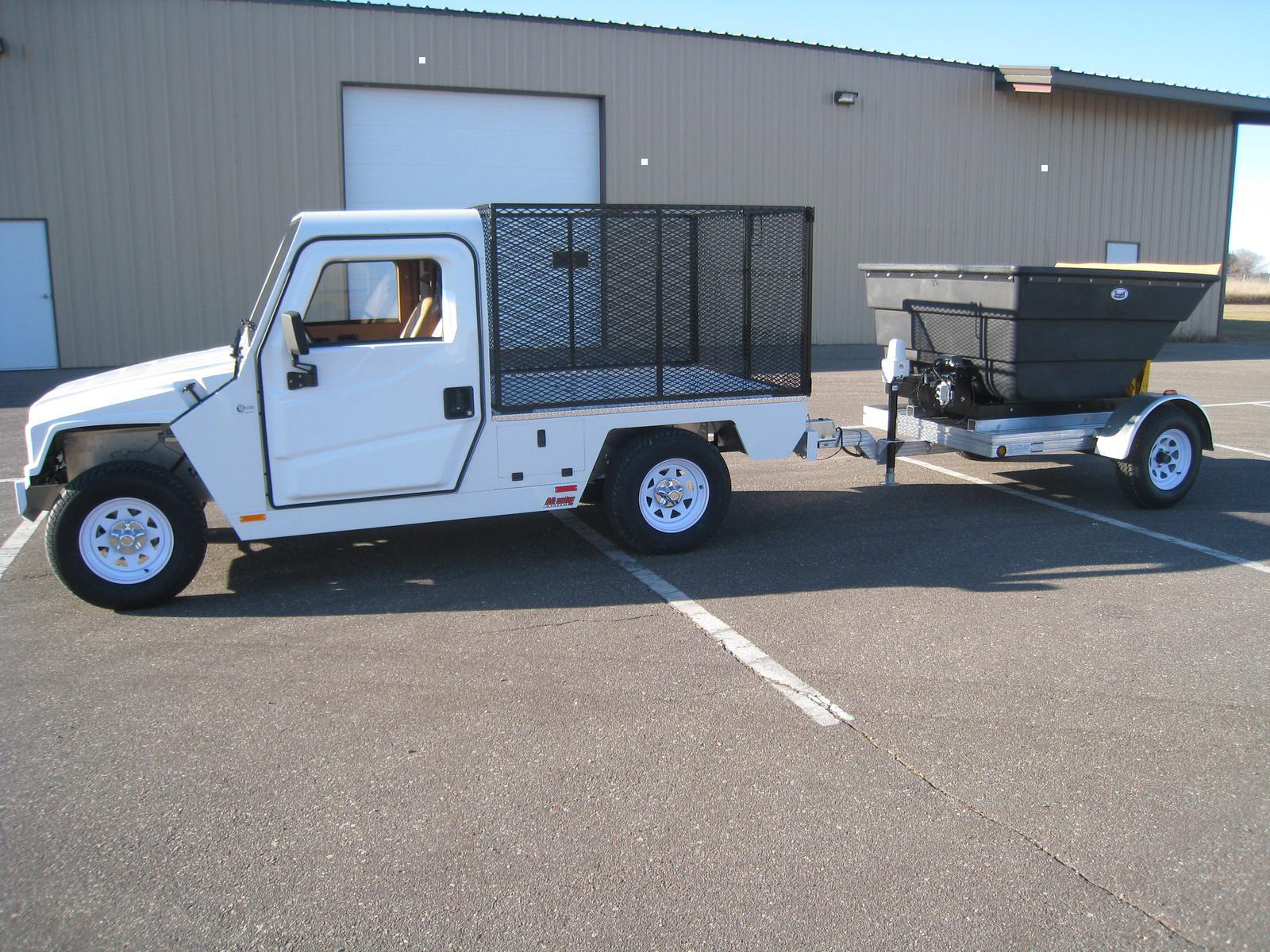

Hitch

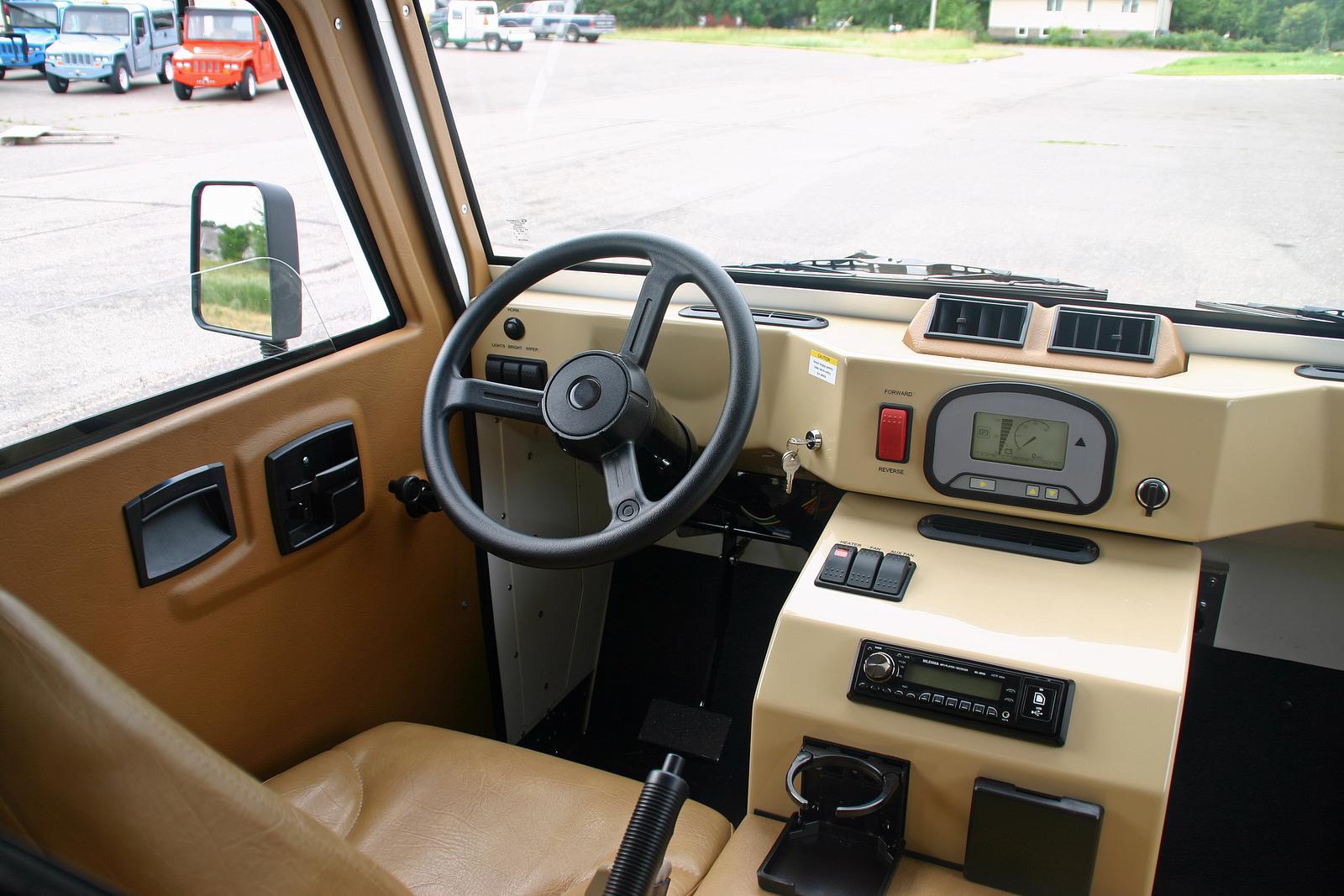

Radio
Sun Visors
EXV2 Specifications
25 mph (40km/h)
30-45 miles*
155" x 61.5" x 69"
(393.7 x 156.21 x 175.26 cm)
102.15 in.
8.5 in.
Typically 1800-2180lb (816-990kg)*
72V

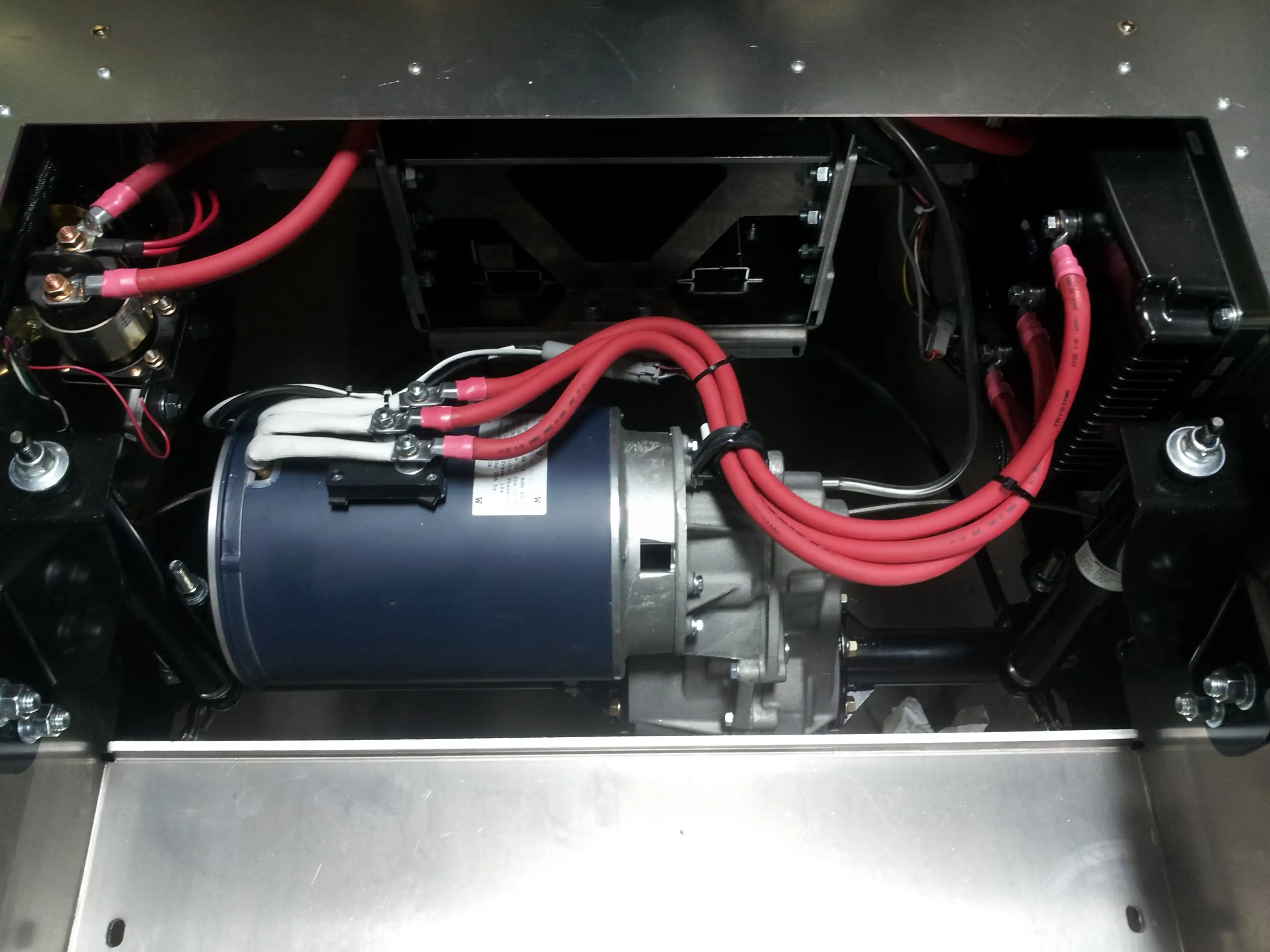

35HP, 26KW AC
Solid state self diagnostic AC speed controller
110 Ah lead acid, 100 Ah Li or 200 Ah Li
Std with lead acid
1.5KW - 6.6KW
120VAC 15A - 220VAC 30A
1-8 hours*
Riveted Aluminum Unibody
Dual powder coated steel
Steel Framed Roll-up Window, Fiberglass Molded Composite Outer & Plastic ABS Inner
2
Adjustable bucket
3000 lbs - base weight
Rack-and-Pinion Steering
14 in. Steering Wheel on Tilt Column
18.5 ft.
215/70 R15 Radial Passenger Vehicle Tires
Helical gear, oil bath transaxle
A-Arm Independent Suspension with Coil-Over Shocks
Leaf Springs over Axle with Gas Shocks
Four Wheel Hydraulic Disc Brakes w/Regen
Hand Actuated Lever Parking Brake
High/low beam, turn, brake, license
72VDC 1500 watt electric
3000 lbs - base weight
32"
EXV2 Patriot Flatbed 66.75" x 59" x 38"
EXV2 Patriot Pickup 66" x 59" x 38"
EXV2 Patriot Toolbox 66.75" x 35" x 38"
EXV2 Patriot Topper 63.25" x 50.25" x 35.25"
EXV2 Patriot Topper Toolbox 63.25" x 32.5" x 35.25"
*Battery pack, payload, towing, and charger type will impact range and charge time.
