EXV2 LINEUP

e-ride Industries 2025 EXV2 Patriot lineup is designed to haul your load. Whether you need an open platform or sealed enclosure these versitile trucks are here to assist.

EXV2 PATRIOT
The EXV2 Patriot is the definition of a game changer. That's right, America's most capable electric work truck. It is proof that electric vehicles aren't only gaining popularity because of cost savings or being green, they can also be tough, quality built, comfortable, and able to get the job done. At only estimated cost of three cents a mile to operate, you will not only be enjoying the thrill of the ride, you will be saving money in fuel and in maintenance costs while meeting your every day initiatives, mandates, and goals to go green.
  • 72 volt electric
  • Speeds up to 25MPH
  • Zero carbon emissions
  • AC dive system
  • Range up to 60 miles
  • Load capacity up to 1300 pounds
  • Tow capacity up to 1300 pounds
  • 222 in turning radius
  • One-year warranty
  • 2 person capacity
  • Ground clearance 8.5 inches
  • Dimensions
    • Length 155 inches
    • Width 61.5 inches
    • Height 69 inches
Full specifications below

Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

EXV2 PATRIOT PICKUP
All of the benefits of the EXV2 Patriot but with this fold down bed side option it creates the availability to easily change the vehicle from a flatbed to pickup box configuration. All three bed sides fold down by simply pulling them upward then out. Each of the bed sides can be easily completely removed. Allows for easy loading on all three sides of the flatbed. Panels are all aluminum painted to match body color. Hinges are made of thick steel with zinc coated finish.
  • 72 volt electric
  • Speeds up to 25MPH
  • Zero carbon emissions
  • AC dive system
  • Range up to 60 miles
  • Load capacity up to 1300 pounds
  • Tow capacity up to 1300 pounds
  • 222 in turning radius
  • One-year warranty
  • 2 person capacity
  • Ground clearance 8.5 inches
  • Dimensions
    • Length 155 inches
    • Width 61.5 inches
    • Height 69 inches
Full specifications below

Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

EXV2 PATRIOT TOOLBOX
All of the benefits of the EXV2 Patriot but with lockable, double side opening toolboxes on both sides.
  • 72 volt electric
  • Speeds up to 25MPH
  • Zero carbon emissions
  • AC dive system
  • Range up to 60 miles
  • Load capacity up to 1300 pounds
  • Tow capacity up to 1300 pounds
  • 222 in turning radius
  • One-year warranty
  • 2 person capacity
  • Ground clearance 8.5 inches
  • Dimensions
    • Length 155 inches
    • Width 61.5 inches
    • Height 69 inches
Full specifications below

Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

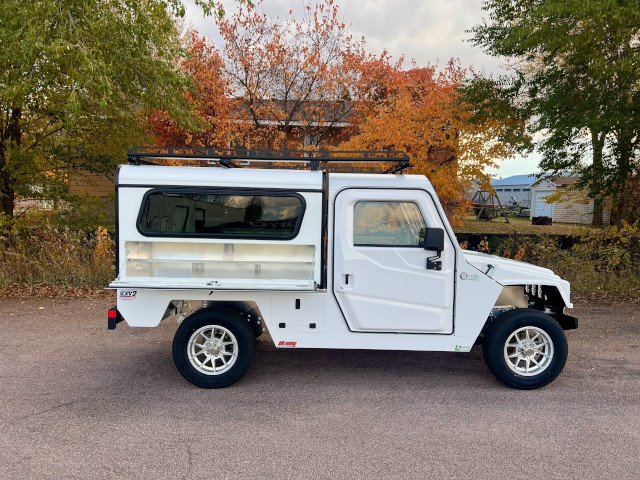

EXV2 PATRIOT TOPPER
All of the benefits of the EXV2 Patriot but with added heavy duty, thick skinned aluminum topper enclosure built with an all aluminum structure designed to provide you a dry lockable storage area. At the rear of the enclosure are two lockable doors that open sideways. Each door has its own window. On each side of the topper are lockable windows that lift open allowing easier access to the enclosure. The front window slides open for air circulation. It also flips inward and down allowing full access to clean both sides of the enclosure glass and rear window of the vehicle cab. All locks on the enclosure are keyed alike.
  • 72 volt electric
  • Speeds up to 25MPH
  • Zero carbon emissions
  • AC dive system
  • Range up to 60 miles
  • Load capacity up to 1300 pounds
  • Tow capacity up to 1300 pounds
  • 222 in turning radius
  • One-year warranty
  • 2 person capacity
  • Ground clearance 8.5 inches
  • Dimensions
    • Length 155 inches
    • Width 61.5 inches
    • Height 69 inches
Full specifications below

Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

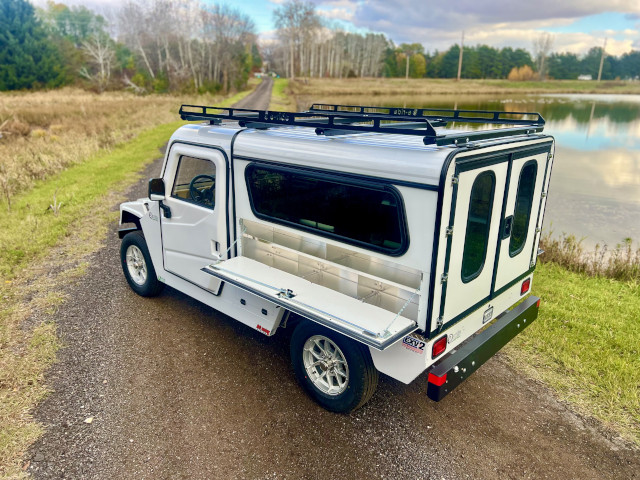

EXV2 PATRIOT TOPPER TOOLBOX
All of the benefits of the EXV2 Patriot but with added heavy duty topper enclosure with built in toolboxes built with an all aluminum structure designed to provide you a dry lockable storage area. At the rear of the enclosure are two lockable doors that open sideways. Each door has its own window. On each side of the topper are lockable windows that lift open allowing easier access to the enclosure. Also on each side are tool boxes. The toolbox doors open downward providing a small work space when open. In each toolbox are solid dividers providing 5 separated storage compartments. The front window slides open for air circulation. It also flips inward and down allowing full access to clean both sides of the enclosure glass and rear window of the vehicle cab. All locks on the enclosure are keyed alike.
  • 72 volt electric
  • Speeds up to 25MPH
  • Zero carbon emissions
  • AC dive system
  • Range up to 60 miles
  • Load capacity up to 1300 pounds
  • Tow capacity up to 1300 pounds
  • 222 in turning radius
  • One-year warranty
  • 2 person capacity
  • Ground clearance 8.5 inches
  • Dimensions
    • Length 155 inches
    • Width 61.5 inches
    • Height 69 inches
Full specifications below

Optional Accessories: Lithium batteries, Air conditioning, Ladder rack, Solar charging, Trailer hitch, Sun visors, Backup alarm, Reverse light, Radio, Window washer, Aluminum wheels, Beacon light, Emergency lights, J1772 inlet

WHY EXV2
Six reasons to choose an E-ride EXV2:
Eco-friendly

Zero carbon emissions enable organizations to meet their sustainability goals without sacrificing productivity.

Easy to charge

Easily charge using a traditional 120-volt 15-amp wall outlet. Lithium battery system can also charge on 220-volt 20-amp for a fast recharge time.

Easy to maintain

Whether equipped with flooded lead acid batteries with water fill system or maintenance free li-ion batteries. Down time for maintenance is very minimal.

Comfortable seating and spacious cab

With a cab larger than most NEV's, all e-ride models come standard with adjustable bucket seats, tilt steering column, multiple storage compartments, heated cab and has the option of air conditioning for the extreme climates.

Versatile performance to serve an array of industries

Our EXV2 vehicles are powerful enough for hilly terrains and fast acceleration for on the road, quiet enough for cemeteries, sustainable for campuses, parks and recreation, and large enough to haul what you need.

Heavy-duty capabilities maximize productivity
With up to 1300-lb load capacity our EXV2 rival the average pickup truck at a fraction of the price and size
CHOOSE YOUR BATTERY SYSTEM
Choose a battery pack based on what matters most to you—price, maintenance, replacement costs, lifetime charge cycles, weight, range or charge time. We have an option for everyone.
Flooded Lead Acid
Li-Ion 100AH 3.3KW Charger (8KW)
Li-Ion 100AH 6.6KW Charger (8KW)
Li-Ion 200AH 3.3KW Charger (16KW)
Li-Ion 200AH 6.6KW Charger (16KW)
Battery Life Cycles*
550 @80% DOD
1500 @80% DOD
1500 @80% DOD
1500 @80% DOD
1500 @80% DOD
Typical Range**
15-30 miles
15-30 miles
15-30 miles
30-60 miles
30-60 miles
Charge Time
7-8 hrs
3-7 hrs
1.5-7 hrs
5-14 hrs
2.5-14 hrs
Maint. Free
No
Yes
Yes
Yes
Yes
Operat. Temp.***
-4-113°F
-20-130°F
-20-130°F
-20-130°F
-20-130°F
Battery Warranty
1 Year
1 Year
1 Year
1 Year
1 Year
*DOD = Depth of discharge, Life cycles vary by usage and maintenance.
**Range based on typical, average use. Model, payload, battery type, battery age and terrain will impact range.
***Range reduced in colder weather. Li-ion comes standard with battery warming system maintaining 50°F.

EXV2 POPULAR OPTIONS

Air Conditioning
Air Conditioning
Ladder Rack
Ladder Rack
Solar
Solar

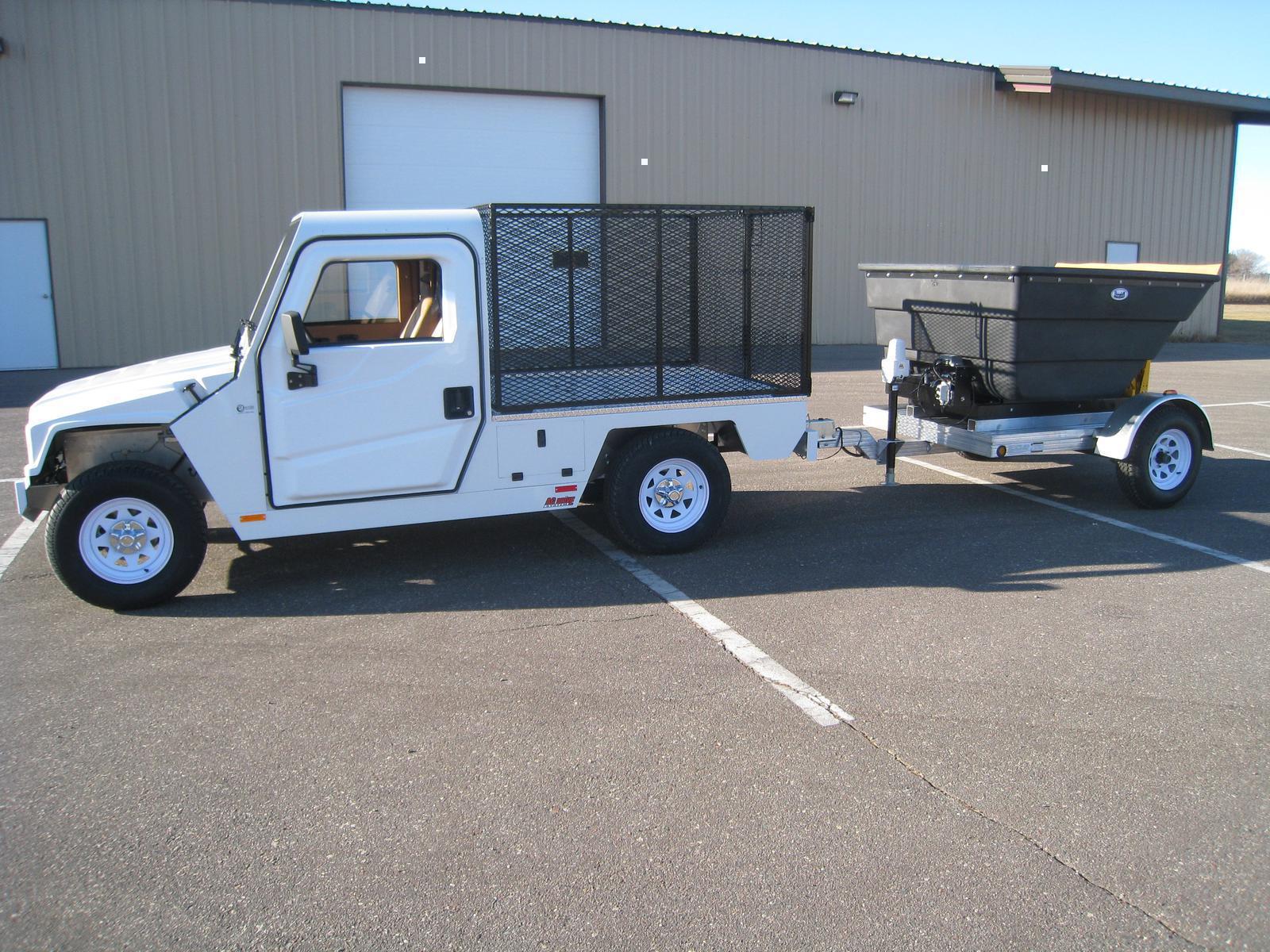

Hitch
Hitch
Radio
Radio
Sun Visors
Sun Visors

EXV2 Specifications
Speed
 25 mph (40km/h)
Range
 30-60 miles*
Dimensions (LxWxH)
 155" x 61.5" x 69"
(393.7 x 156.21 x 175.26 cm)
Wheel Base
 102.15 in.
Ground Clearance
 8.5 in.
Unit Weight
 Typically 1800-2180lb (816-990kg)*
Drive Voltage
 72V
Motor
 35HP, 26KW AC
Controller
 Solid state self diagnostic AC speed controller
Batteries
 110 Ah lead acid, 100 Ah Li or 200 Ah Li
Fill System
 Std with lead acid
Charger
 1.5KW - 6.6KW
Charge Voltage
 120VAC 15A - 220VAC 30A
Charge Time
 1-8 hours*
Frame
 Riveted Aluminum Unibody
Bumpers
 Dual powder coated steel
Doors
 Steel Framed Roll-up Window, Fiberglass Molded Composite Outer & Plastic ABS Inner
Person Capacity
 2
Seats
 Adjustable bucket
Load Capacity*
 3000 lbs - base weight
Steering
 Rack-and-Pinion Steering
Steering column
 14 in. Steering Wheel on Tilt Column
Turning Radius
 18.5 ft.
Tires
 215/70 R15 Radial Passenger Vehicle Tires
Drive Axle
 Helical gear, oil bath transaxle
Front Suspension
 A-Arm Independent Suspension with Coil-Over Shocks
Rear Suspension
 Leaf Springs over Axle with Gas Shocks
Brakes
 Four Wheel Hydraulic Disc Brakes w/Regen
Parking Brake
 Hand Actuated Lever Parking Brake
Lighting
 High/low beam, turn, brake, license
HVAC
 72VDC 1500 watt electric
Towing Capacity
 3000 lbs - base weight
Cargo Height (from ground)
 32"
Cargo Size (LxWxH)
 EXV2 Patriot Flatbed 66.75" x 59" x 38"
EXV2 Patriot Pickup 66" x 59" x 38"
EXV2 Patriot Toolbox 66.75" x 35" x 38"
EXV2 Patriot Topper 63.25" x 50.25" x 35.25"
EXV2 Patriot Topper Toolbox 63.25" x 32.5" x 35.25"

*Battery pack, payload, towing, and charger type will impact range and charge time.
